Rear Booster Fan Rear Control Switch - Black 6 Way

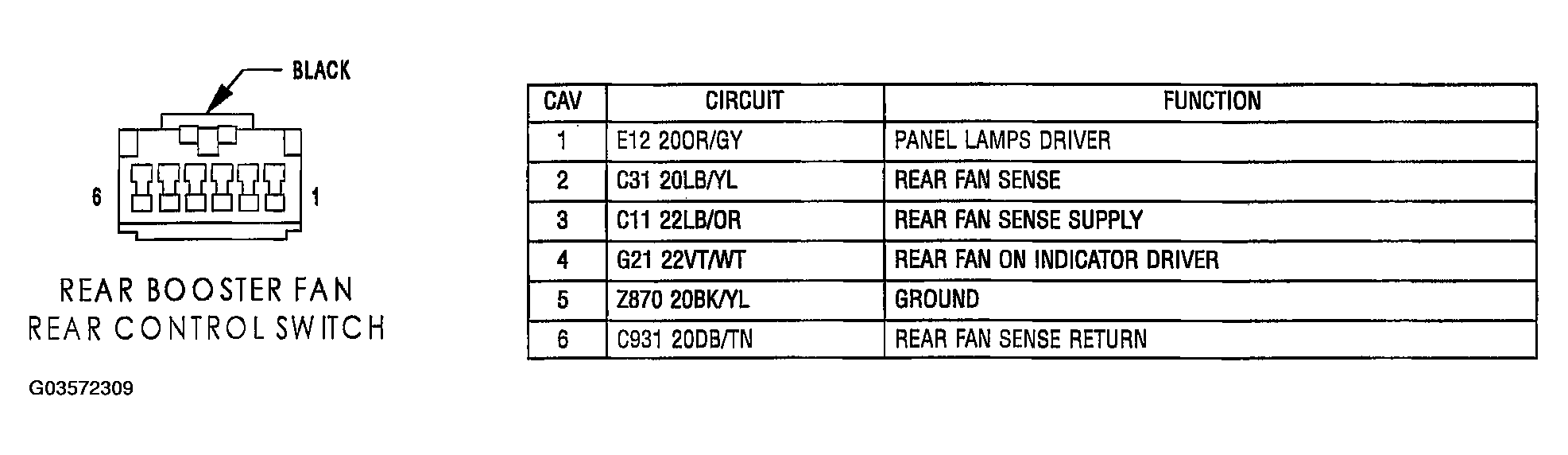

Fig 1: Identifying Rear Booster Fan Rear Control Switch Connector Terminals And Specification (Black 6 Way)

G03572309

Courtesy of DAIMLERCHRYSLER CORP.
