Rear Booster Fan Power Module C1 - Black 4 Way

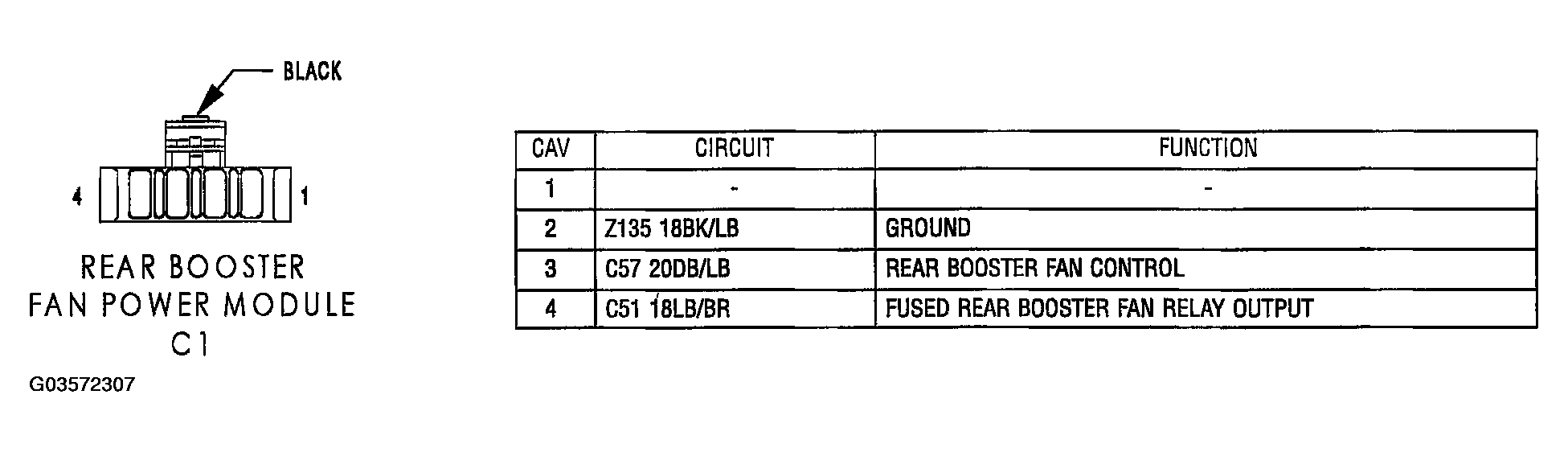

Fig 1: Identifying Rear Booster Fan Power Module C1 Connector Terminals And Specification (Black 4 Way)
G03572307Courtesy of DAIMLERCHRYSLER CORP.
