Reading/Courtesy Lamp-Left Middle - Gray 3 Way

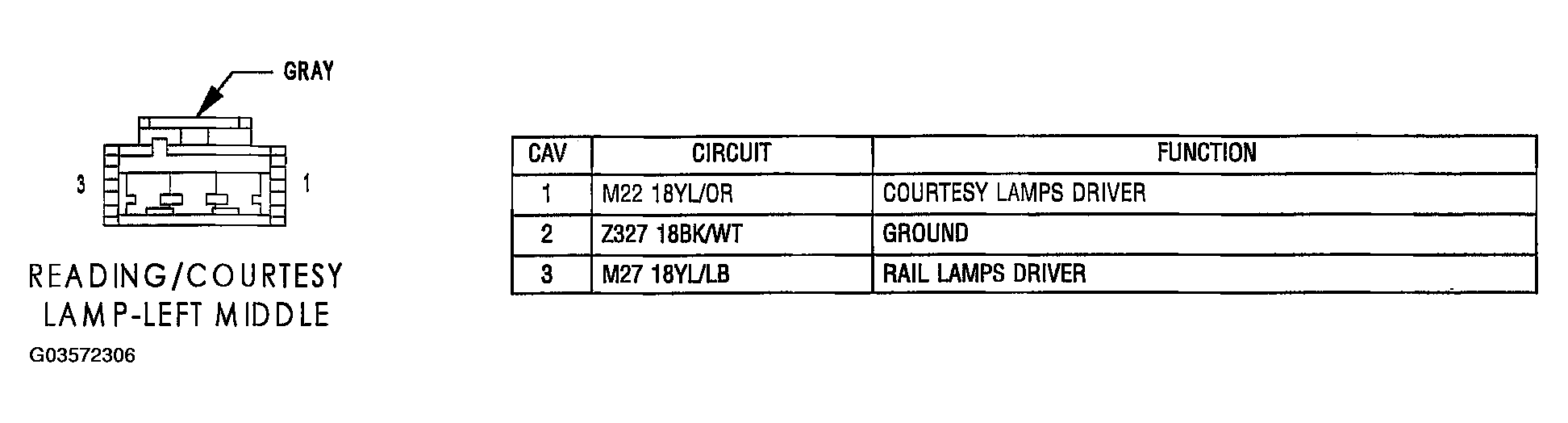

Fig 1: Identifying Reading/Courtesy Lamp-Left Middle Connector Terminals And Specification (Gray 3 Way)
G03572306Courtesy of DAIMLERCHRYSLER CORP.
