Reading Lamp-Front - Black 6 Way

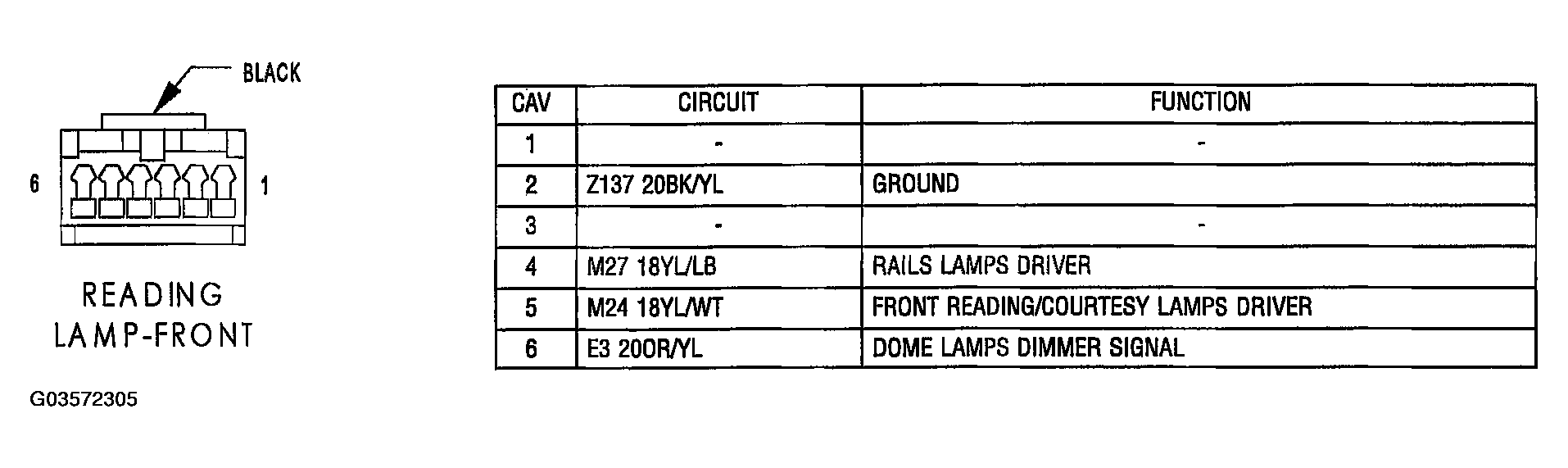

Fig 1: Identifying Reading Lamp-Front Connector Terminals And Specification (Black 6 Way)

G03572305

Courtesy of DAIMLERCHRYSLER CORP.
