Radio C2 (Satellite Radio) - DK. Gray 10 Way

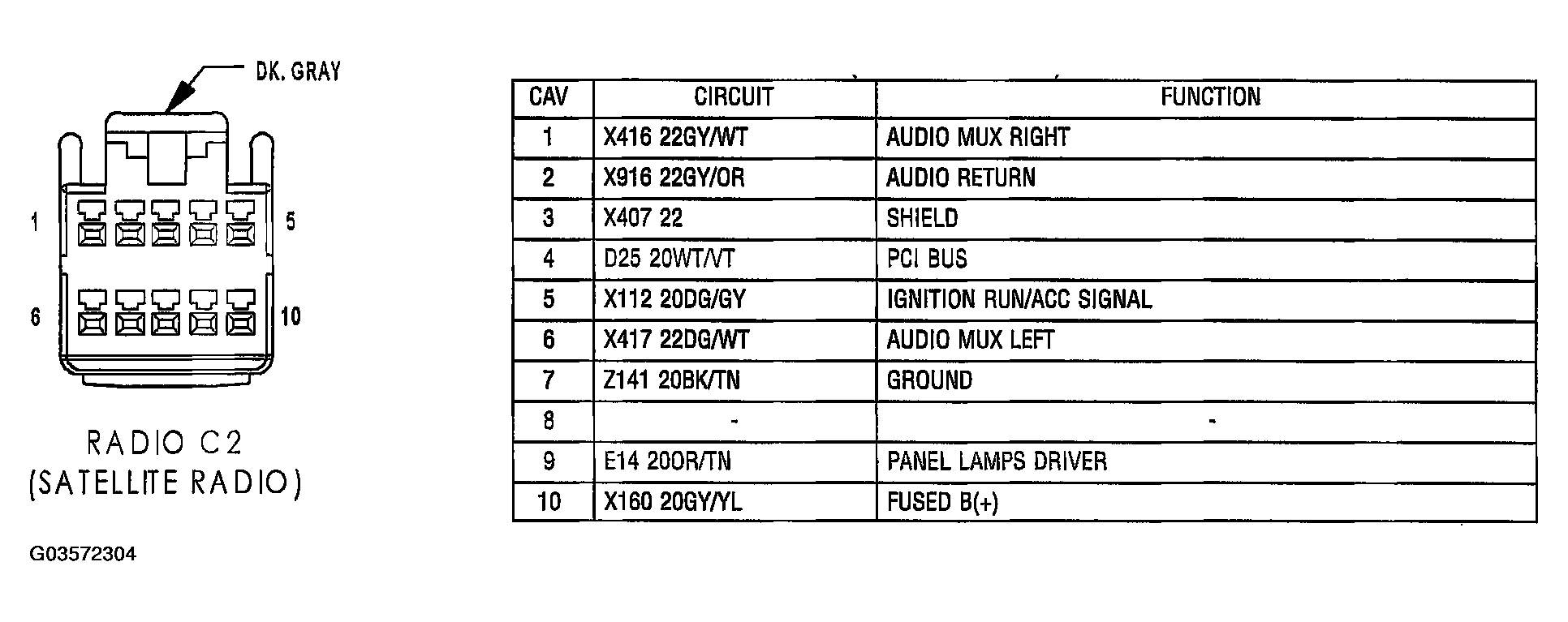

Fig 1: Identifying Radio C2 Connector Terminals And Specification (Satellite Radio - DK. Gray 10 Way)

G03572304

Courtesy of DAIMLERCHRYSLER CORP.
