Radio C2 (DVD/Cd Changer) - DK. Gray 10 Way

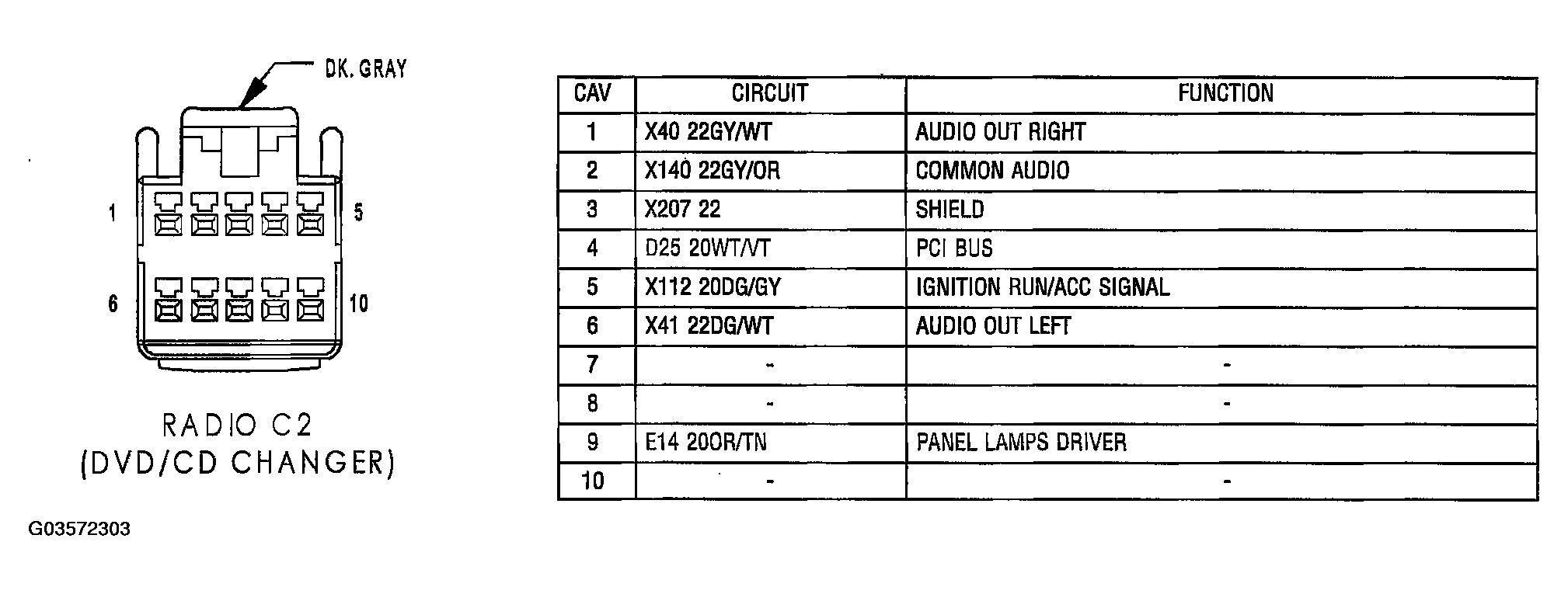

Fig 1: Identifying Radio C2 Connector Terminals And Specification (DVD/CD Changer - DK. Gray 10 Way)

G03572303

Courtesy of DAIMLERCHRYSLER CORP.
