Radio C1 (Except Base) - DK. Gray 22 Way

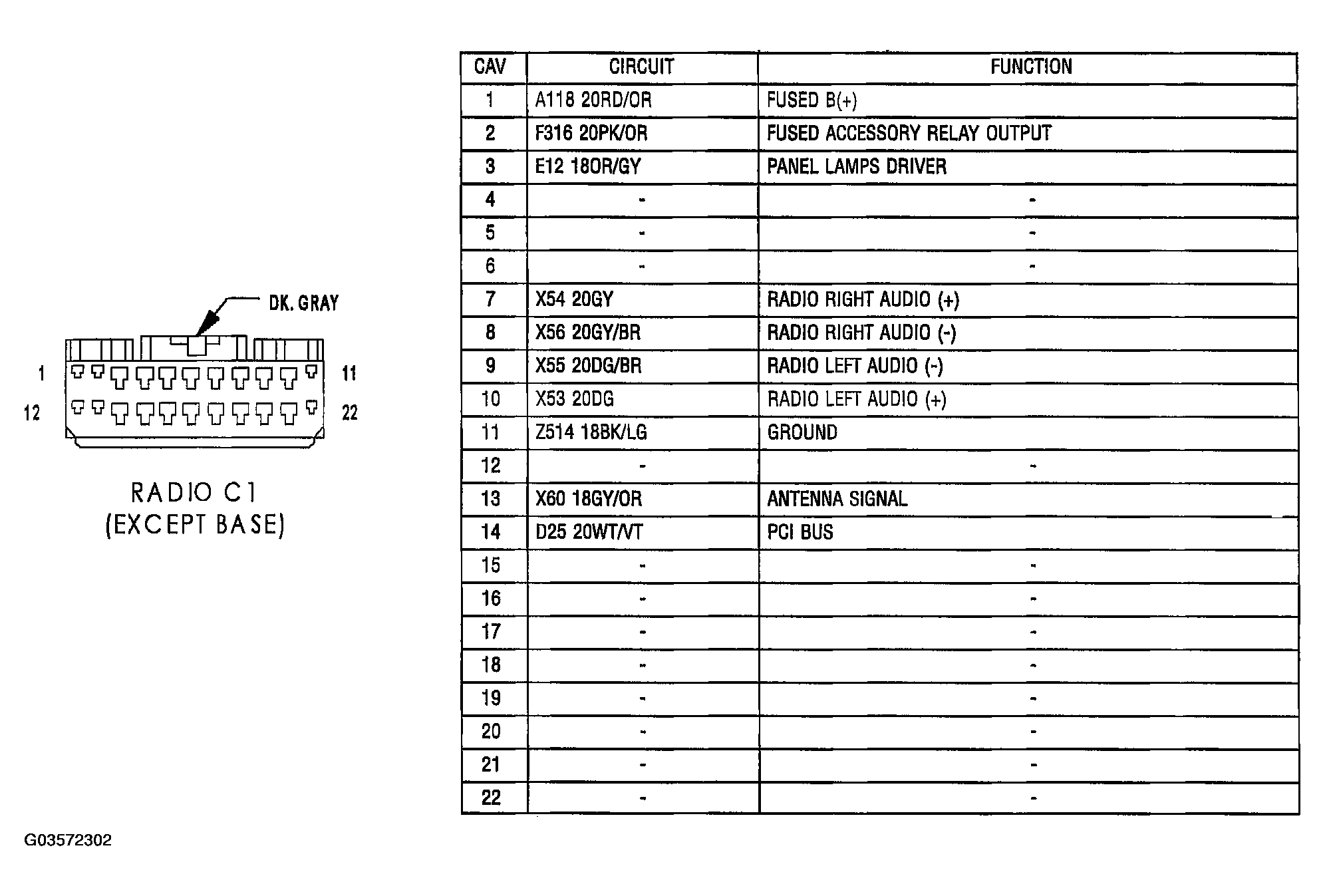

Fig 1: Identifying Radio C1 Connector Terminals And Specification (Except Base - DK. Gray 22 Way)
G03572302Courtesy of DAIMLERCHRYSLER CORP.
