Powertrain Control Module C3 - Black/White 38 Way

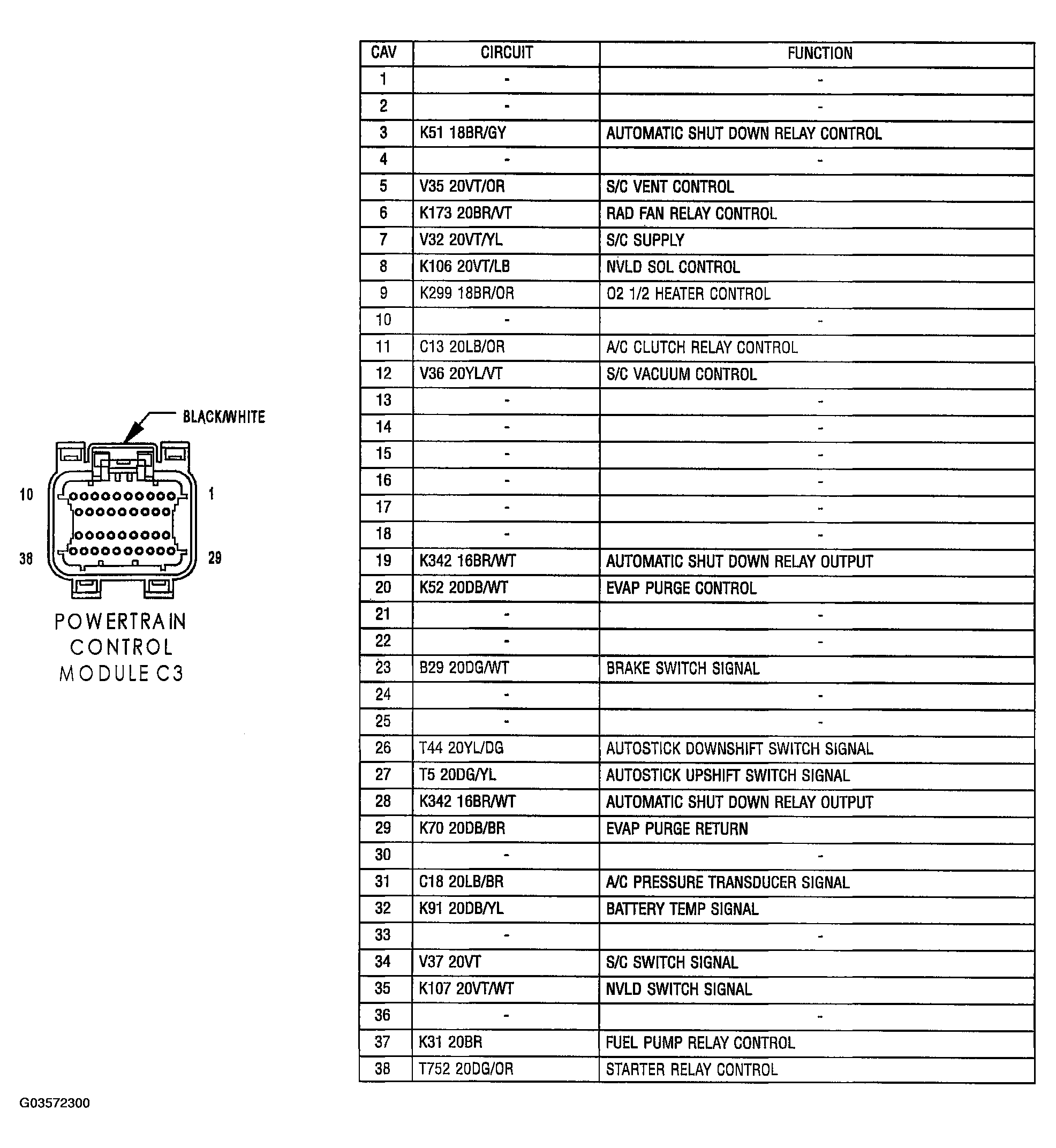

Fig 1: Identifying Powertrain Control Module C3 Connector Terminals And Specification (Black/White 38 Way)

G03572300

Courtesy of DAIMLERCHRYSLER CORP.
