Powertrain Control Module C1 - Black/Black 38 Way

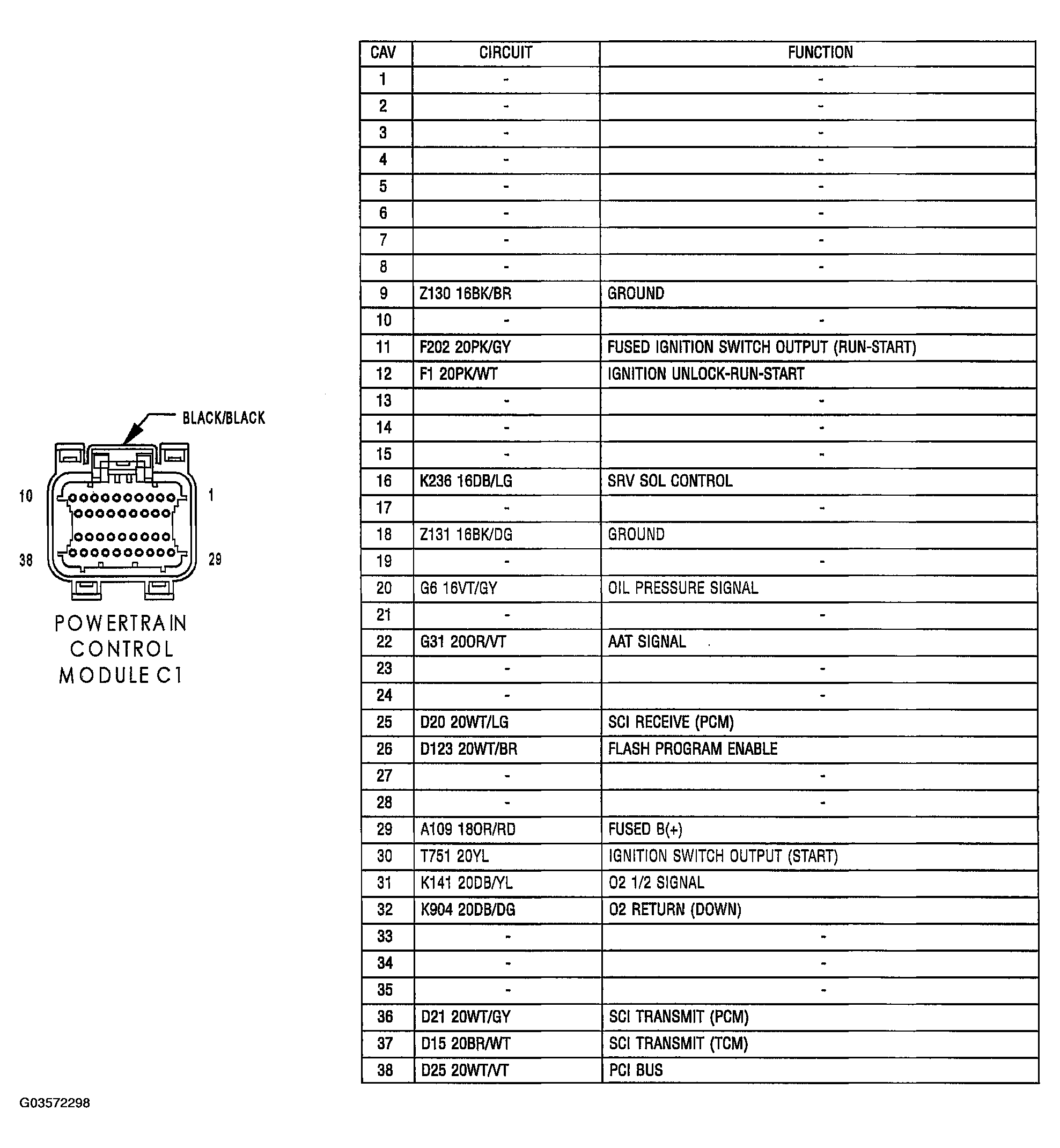

Fig 1: Identifying Powertrain Control Module C1 Connector Terminals And Specification (Black/Black 38 Way)
G03572298Courtesy of DAIMLERCHRYSLER CORP.
