Power Window Switch-Passenger Rear - Black 4 Way

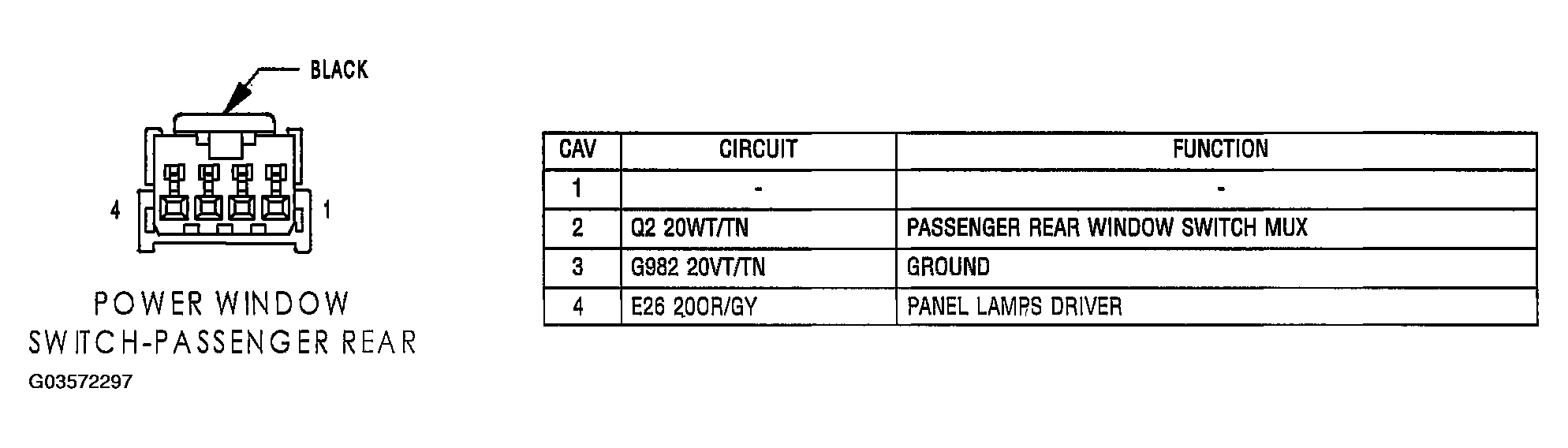

Fig 1: Identifying Power Window Switch-Passenger Rear Connector Terminals And Specification (Black 4 Way)
G03572297Courtesy of DAIMLERCHRYSLER CORP.
