Power Window Switch-Driver Rear - Black 4 Way
Power Window Switch-Driver Rear - Black 4 Way

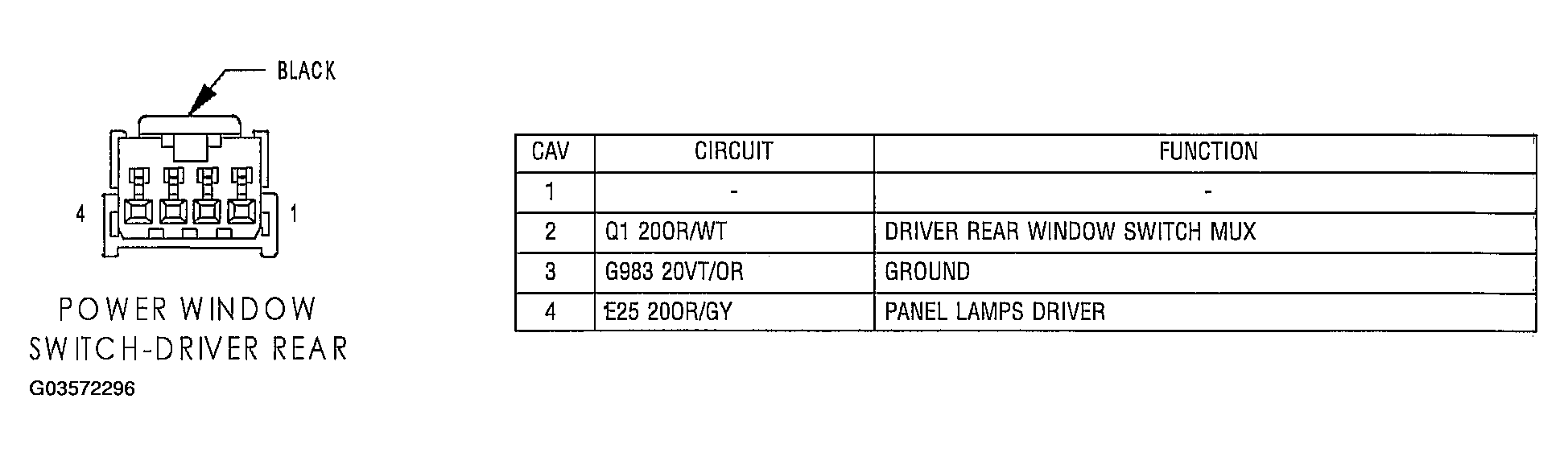

Fig 1: Identifying Power Window Switch-Driver Rear Connector Terminals And Specification (Black 4 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
