Power Window Motor-Passenger Rear - LT. Gray 2 Way

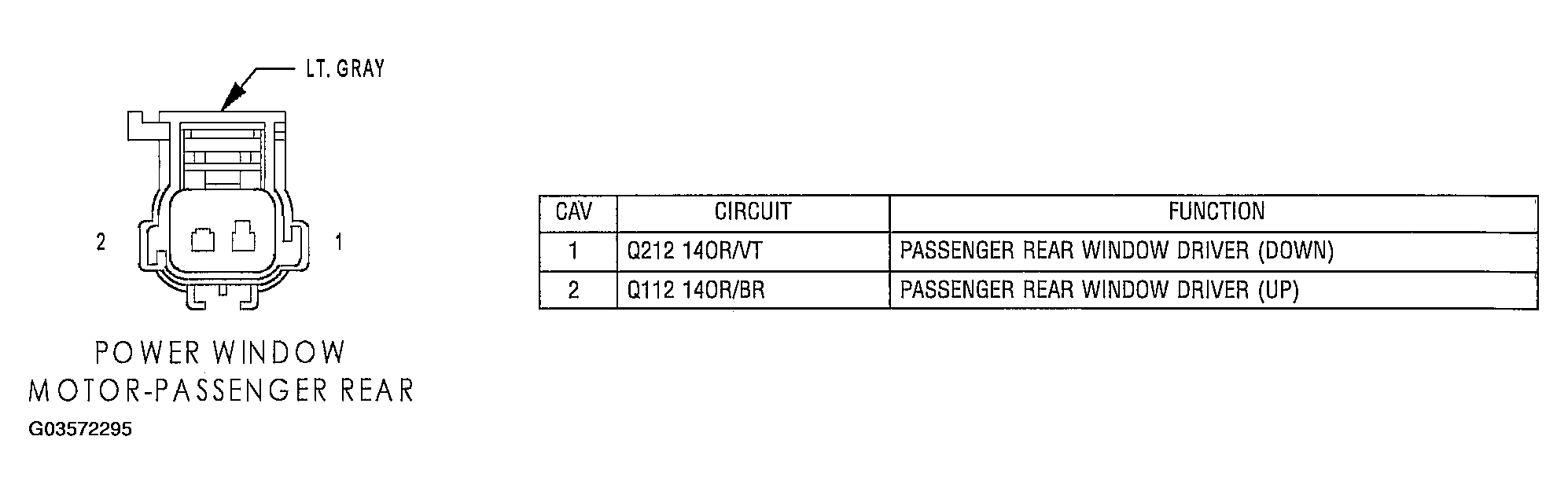

Fig 1: Identifying Power Window Motor-Passenger Rear Connector Terminals And Specification (LT. Gray 2 Way)
G03572295Courtesy of DAIMLERCHRYSLER CORP.
