Power Window Motor-Passenger - LT. Gray 2 Way

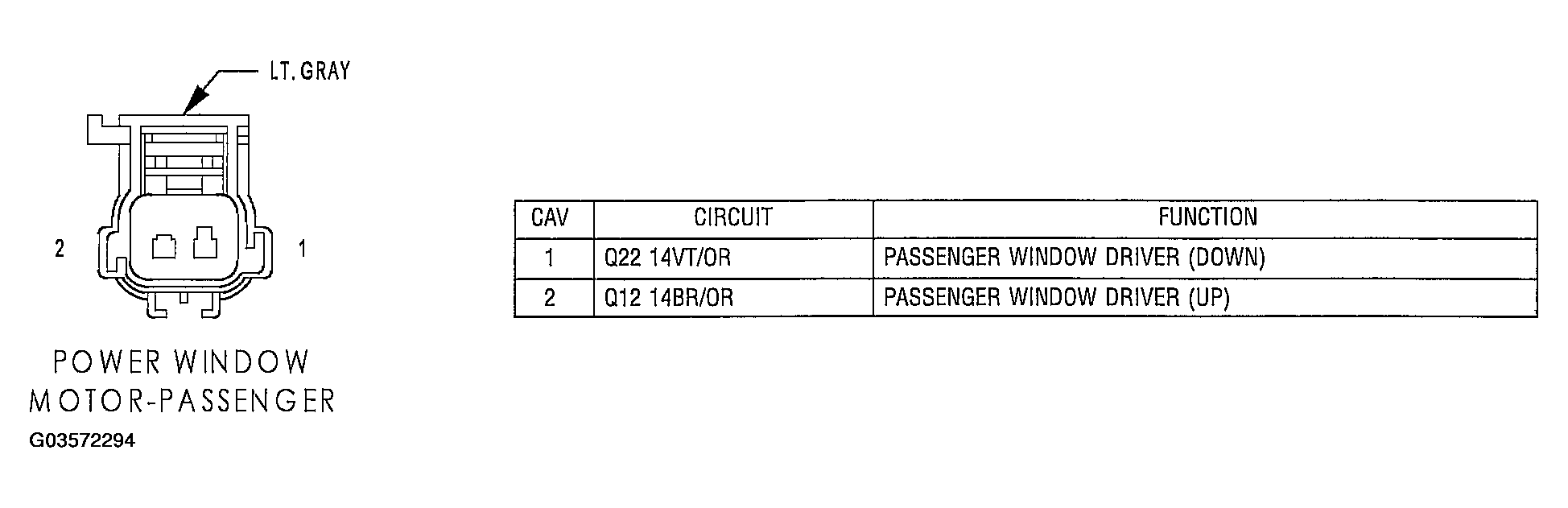

Fig 1: Identifying Power Window Motor-Passenger Connector Terminals And Specification (LT. Gray 2 Way)
G03572294Courtesy of DAIMLERCHRYSLER CORP.
