Power Window Motor-Driver - LT. Gray 2 Way

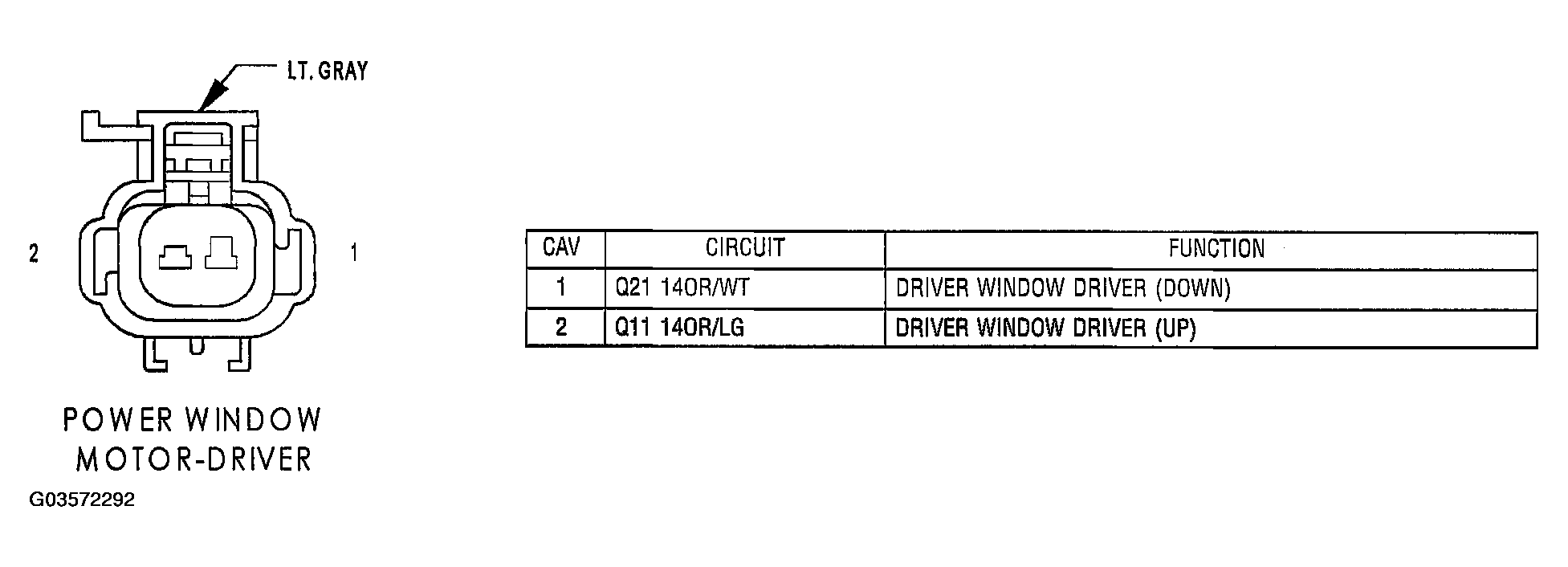

Fig 1: Identifying Power Window Motor-Driver Connector Terminals And Specification (LT. Gray 2 Way)
G03572292Courtesy of DAIMLERCHRYSLER CORP.
