Power Seat Switch-Passenger - Black 12 Way
Power Seat Switch-Passenger - Black 12 Way

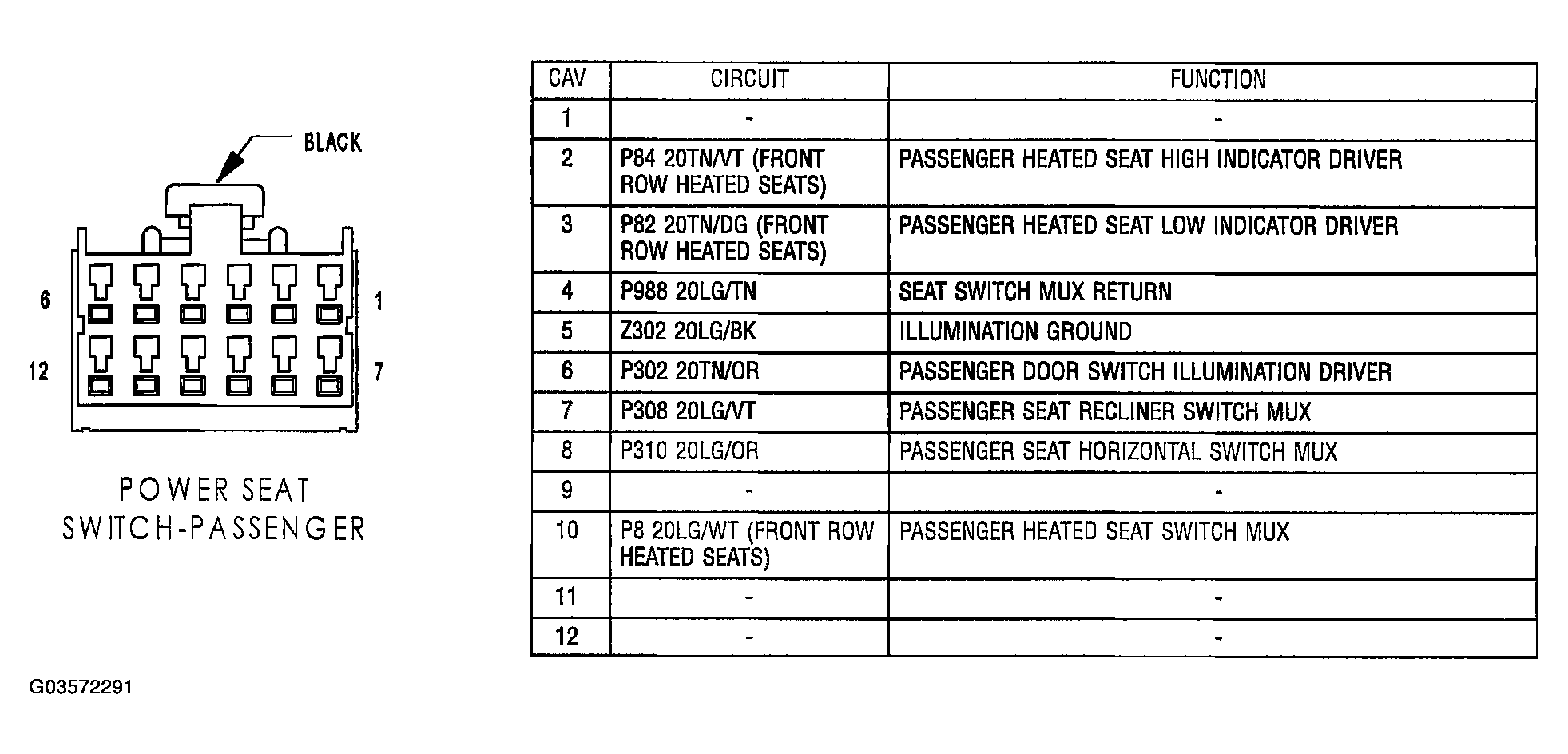

Fig 1: Identifying Power Seat Switch-Passenger Connector Terminals And Specification (Black 12 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
