Connector PINOUTS
>>
Power Seat Switch-Driver - Black 12 Way
Power Seat Switch-Driver - Black 12 Way

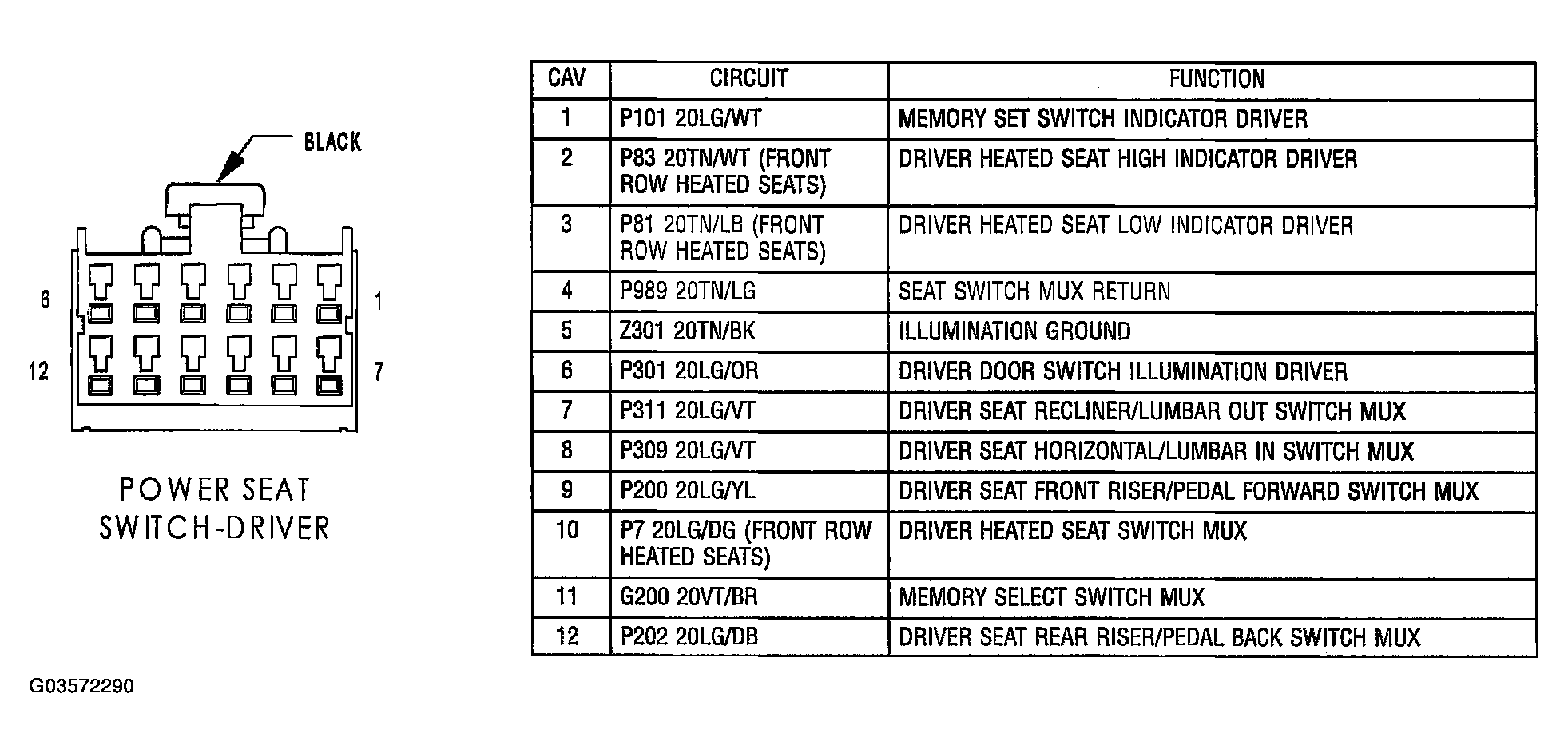

Fig 1: Identifying Power Seat Switch-Driver Connector Terminals And Specification (Black 12 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
