Power Seat Motor-Driver Horizontal - Black 2 Way

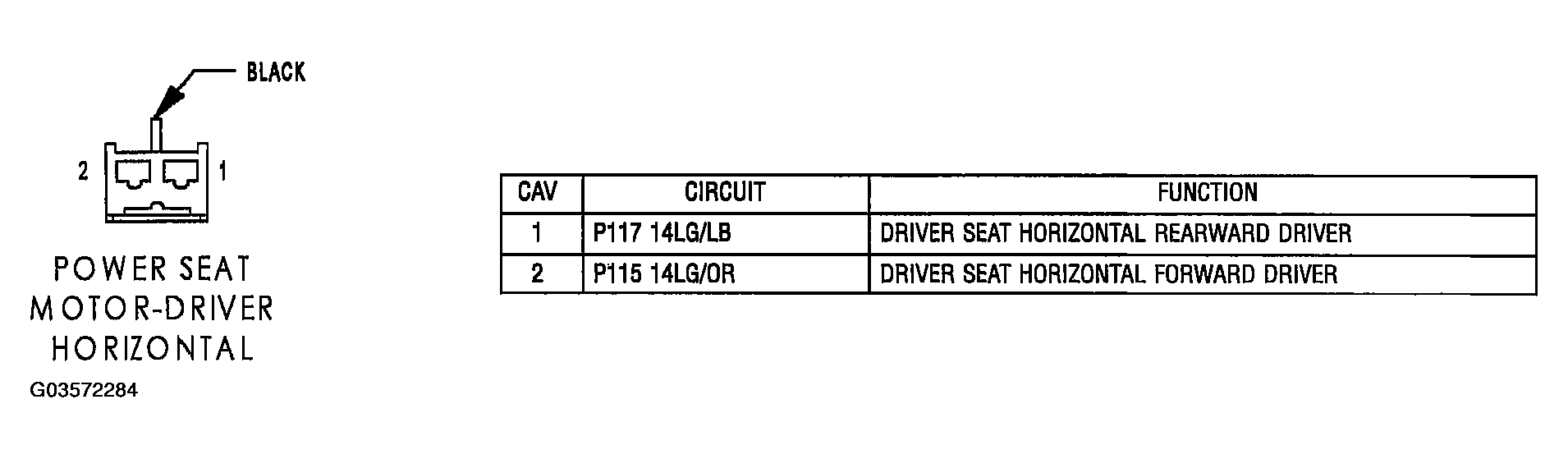

Fig 1: Identifying Power Seat Motor-Driver Horizontal Connector Terminals And Specification (Black 2 Way)

G03572284

Courtesy of DAIMLERCHRYSLER CORP.
