Power Liftgate Module C2 - Black 20 Way

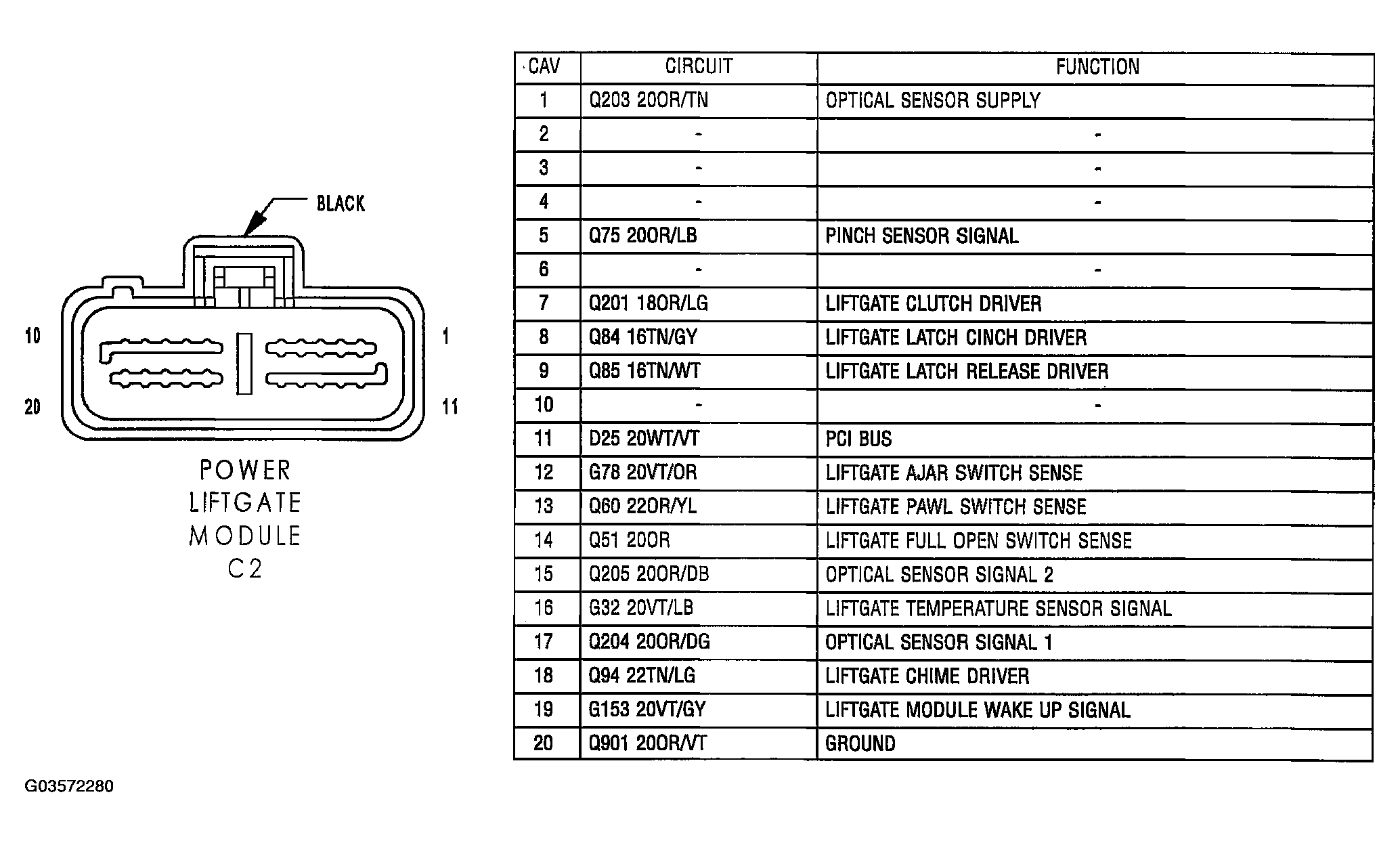

Fig 1: Identifying Power Liftgate Module C2 Connector Terminals And Specification (Black 20 Way)
G03572280Courtesy of DAIMLERCHRYSLER CORP.
