Power Liftgate Module C1 - Black 8 Way

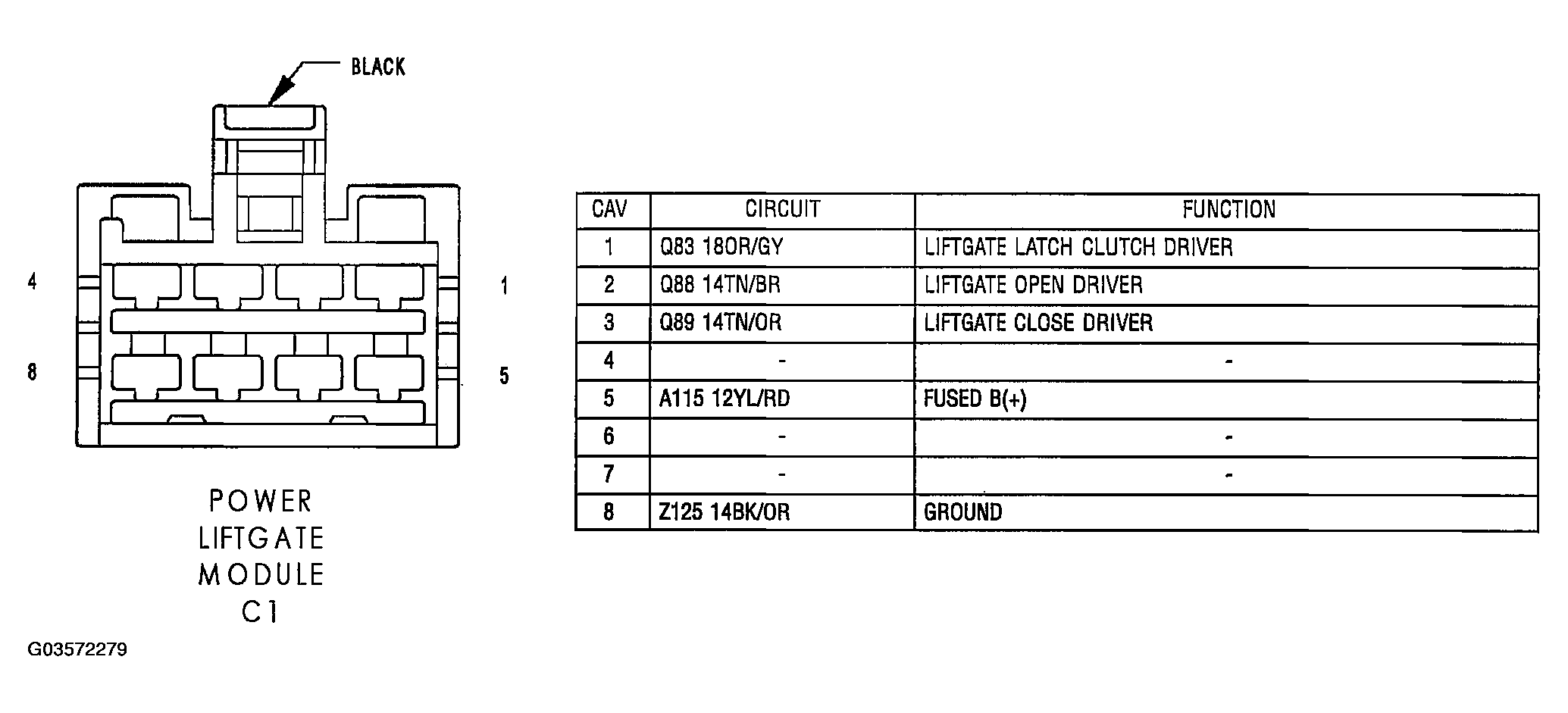

Fig 1: Identifying Power Liftgate Module C1 Connector Terminals And Specification (Black 8 Way)
G03572279Courtesy of DAIMLERCHRYSLER CORP.
