Power Liftgate Drive Unit - DK. Gray 10 Way

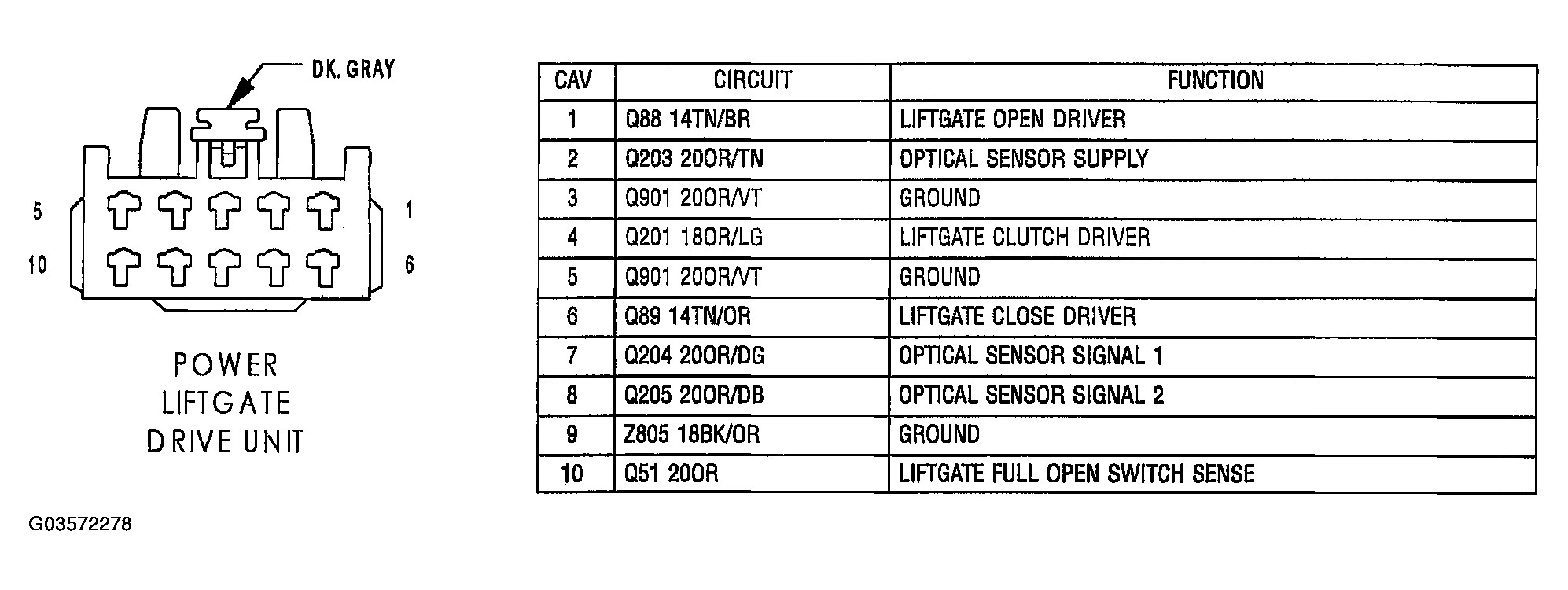

Fig 1: Identifying Power Liftgate Drive Unit Connector Terminals And Specification (DK. Gray 10 Way)

G03572278

Courtesy of DAIMLERCHRYSLER CORP.
