Overhead Console - Black 12 Way

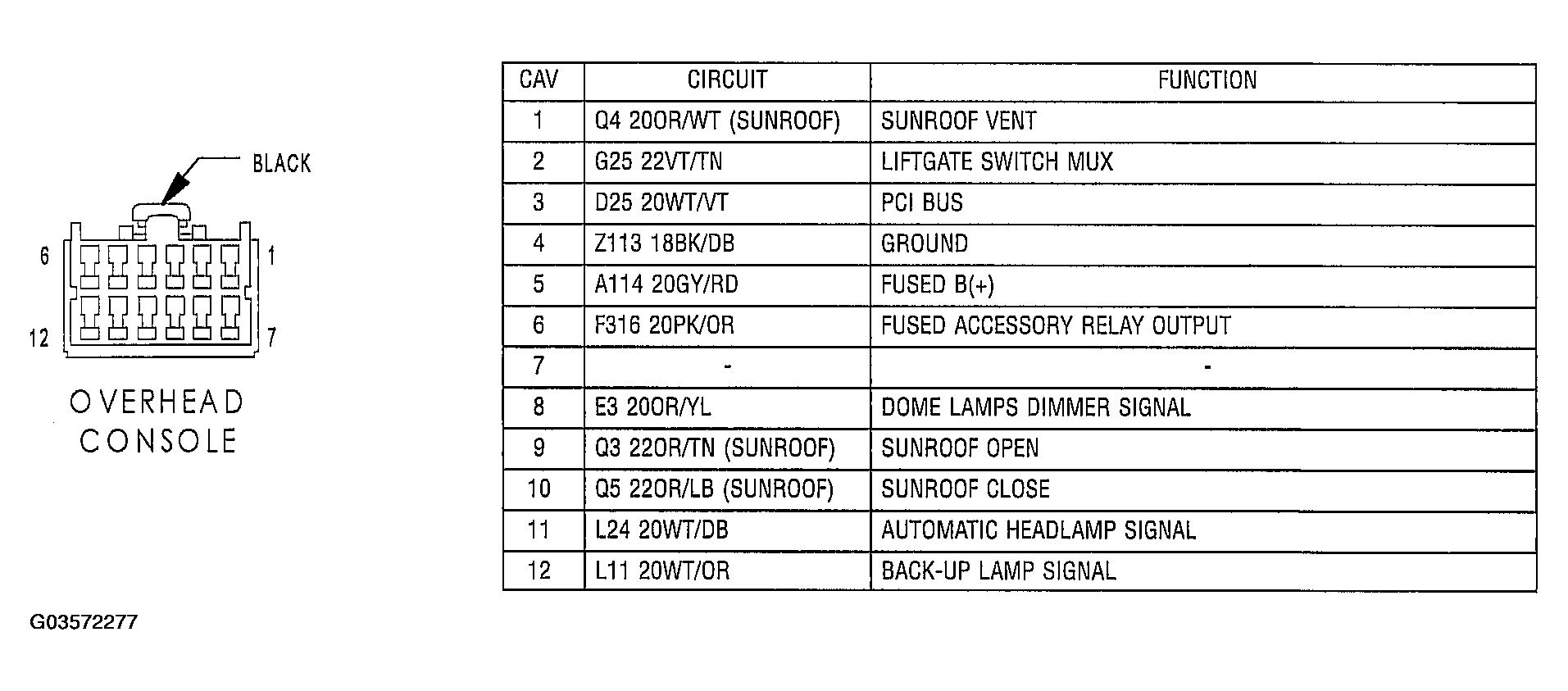

Fig 1: Identifying Overhead Console Connector Terminals And Specification (Black 12 Way)

G03572277

Courtesy of DAIMLERCHRYSLER CORP.
