Navigation Module - Black 16 Way

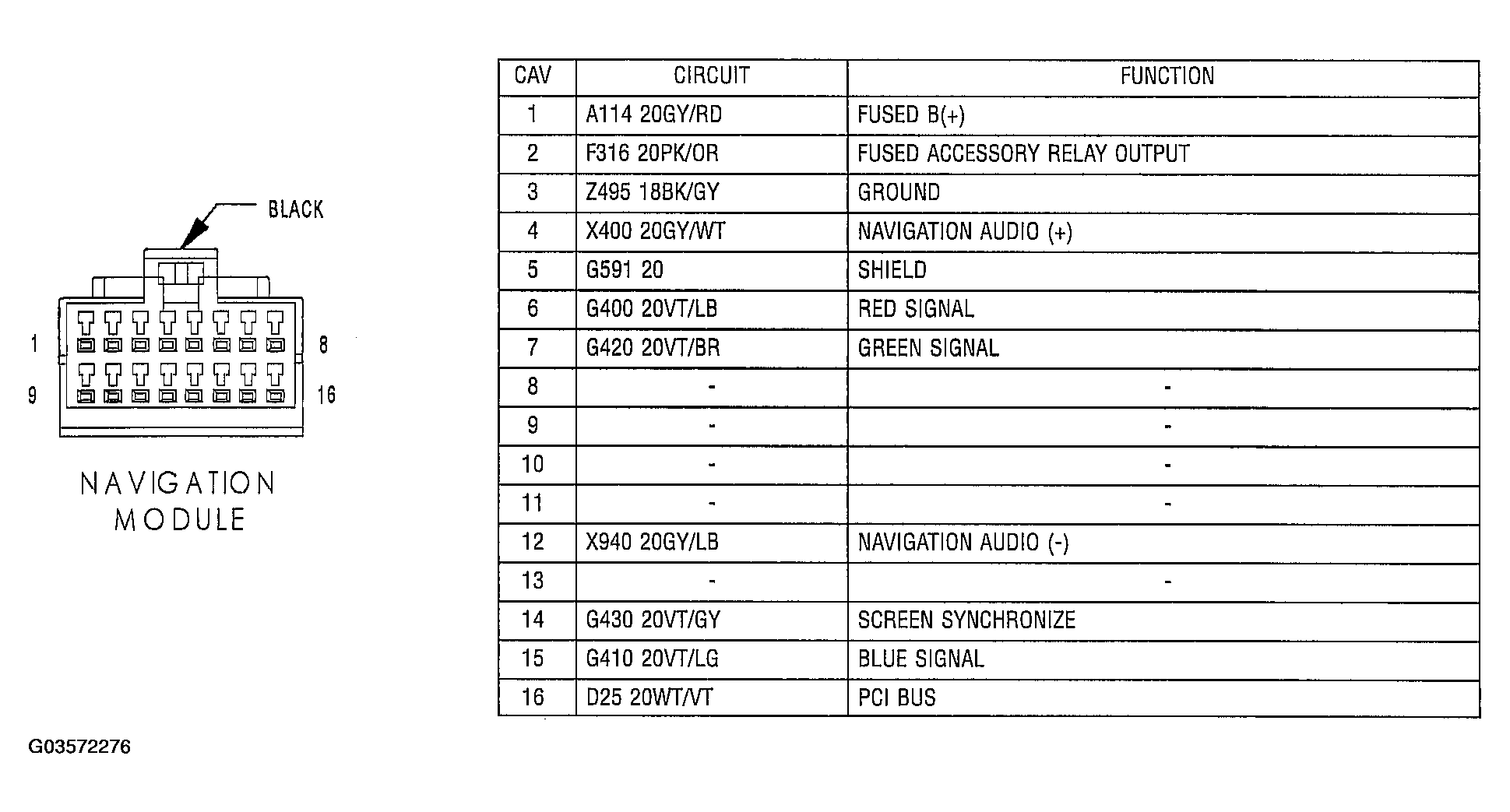

Fig 1: Identifying Navigation Module Connector Terminals And Specification (Black 16 Way)

G03572276

Courtesy of DAIMLERCHRYSLER CORP.
