Multi-Function Switch - Black 12 Way

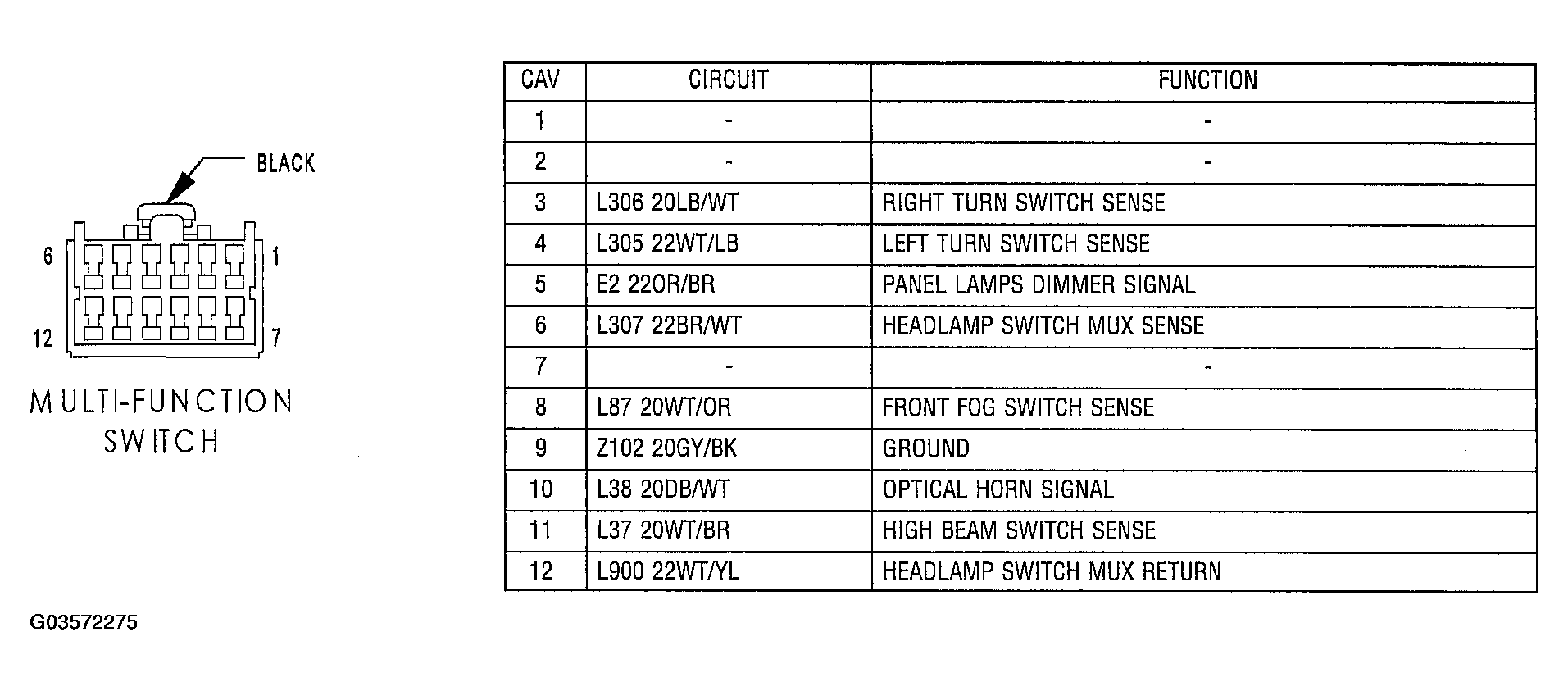

Fig 1: Identifying Multi-Function Switch Connector Terminals And Specification (Black 12 Way)

G03572275

Courtesy of DAIMLERCHRYSLER CORP.
