Memory/Heated Seat Adjustable Pedals Module C3 - White 12 Way

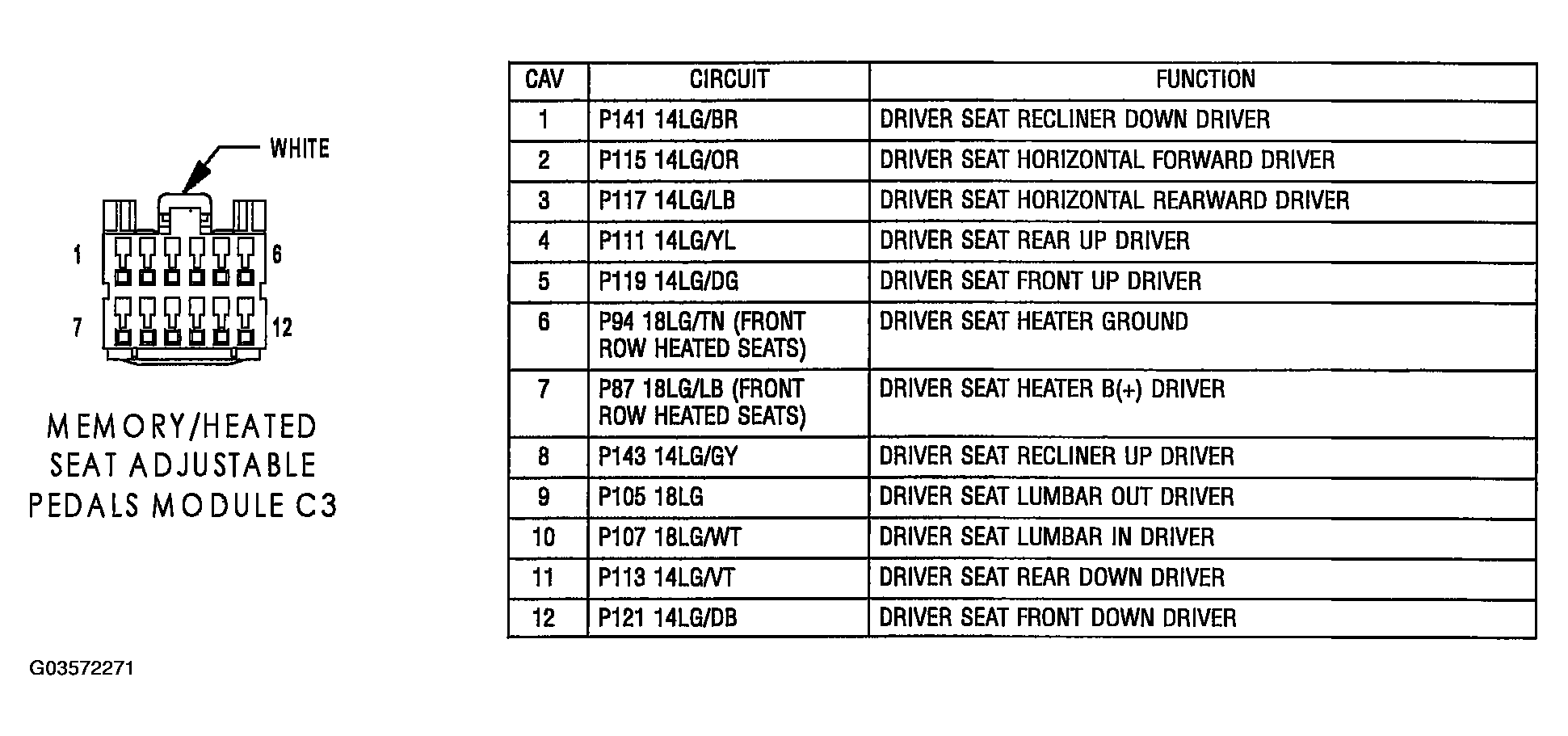

Fig 1: Identifying Memory/Heated Seat Adjustable Pedals Module C3 Connector Terminals And Specification (White 12 Way)

Courtesy of DAIMLERCHRYSLER CORP.
