Memory/Heated Seat Adjustable Pedals Module C2 - Gray 16 Way

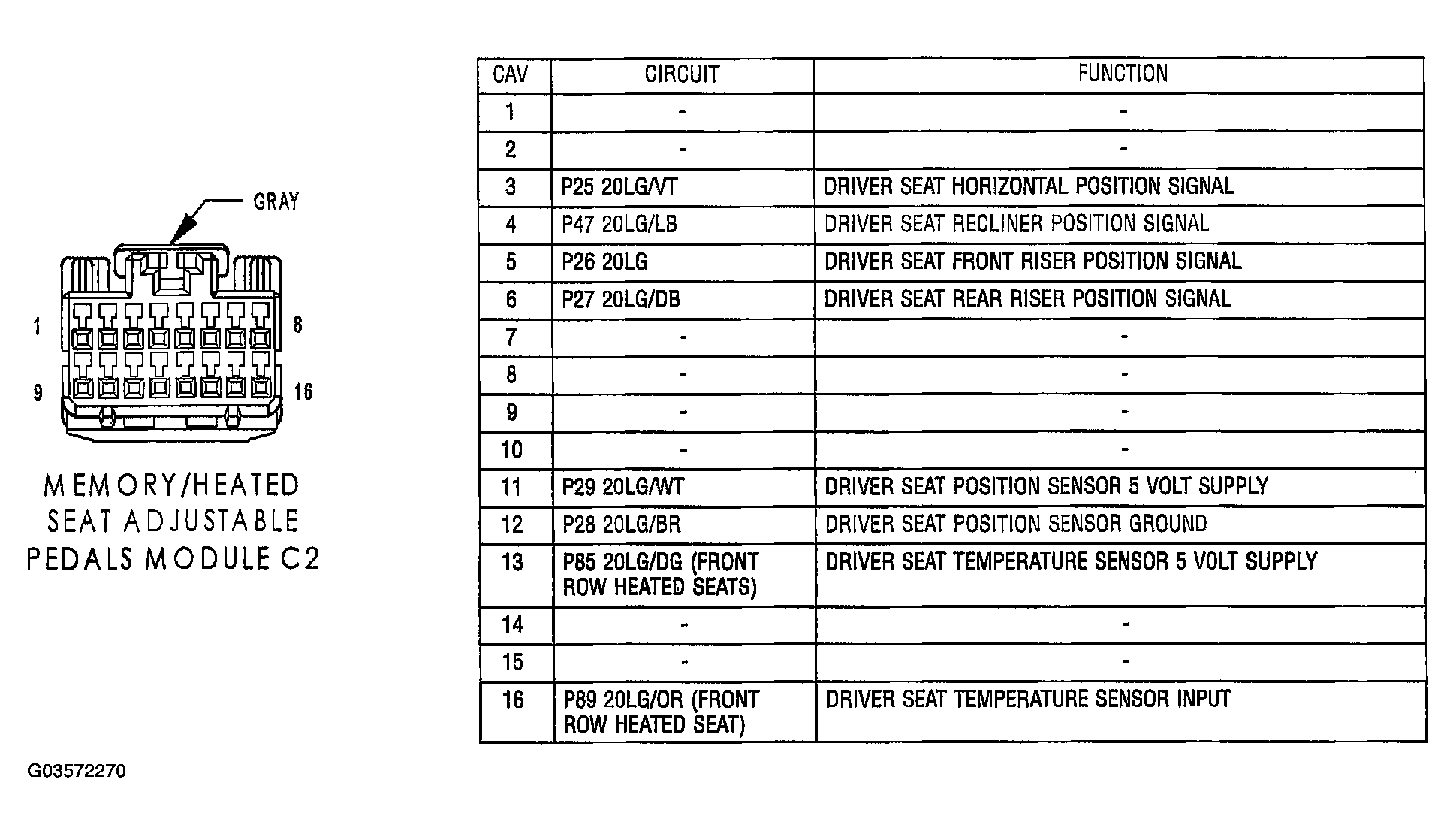

Fig 1: Identifying Memory/Heated Seat Adjustable Pedals Module C2 Connector Terminals And Specification (Gray 16 Way)
G03572270Courtesy of DAIMLERCHRYSLER CORP.
