Memory/Heated Seat Adjustable Pedals Module C1 - DK. Gray 26 Way

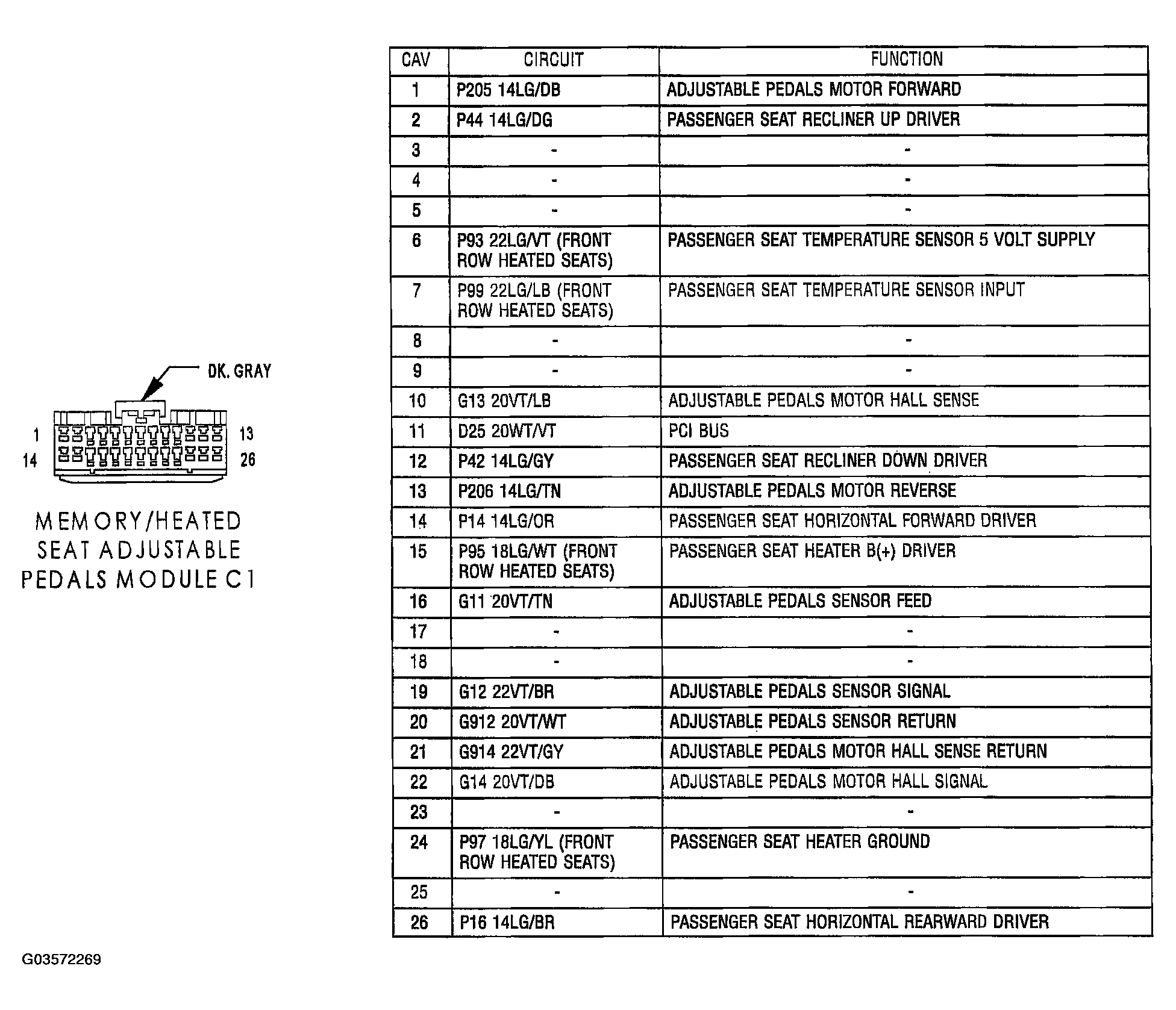

Fig 1: Identifying Memory/Heated Seat Adjustable Pedals Module C1 Connector Terminals And Specification (DK. Gray 26 Way)
G03572269Courtesy of DAIMLERCHRYSLER CORP.
