Liftgate Pinch Sensor-Right (Power Liftgate) - Black 2 Way

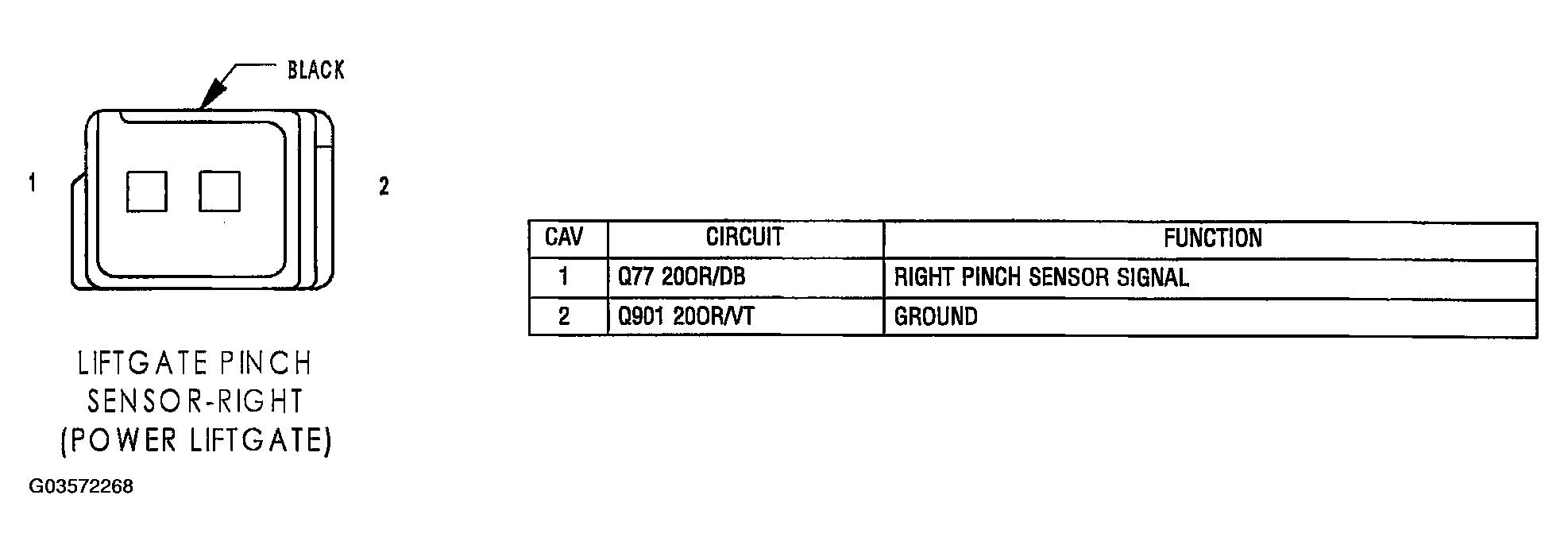

Fig 1: Identifying Liftgate Pinch Sensor-Right Connector Terminals And Specification (Power Liftgate - Black 2 Way)
G03572268Courtesy of DAIMLERCHRYSLER CORP.
