Liftgate Lock Motor/Ajar Switch (Base) - Black 4 Way

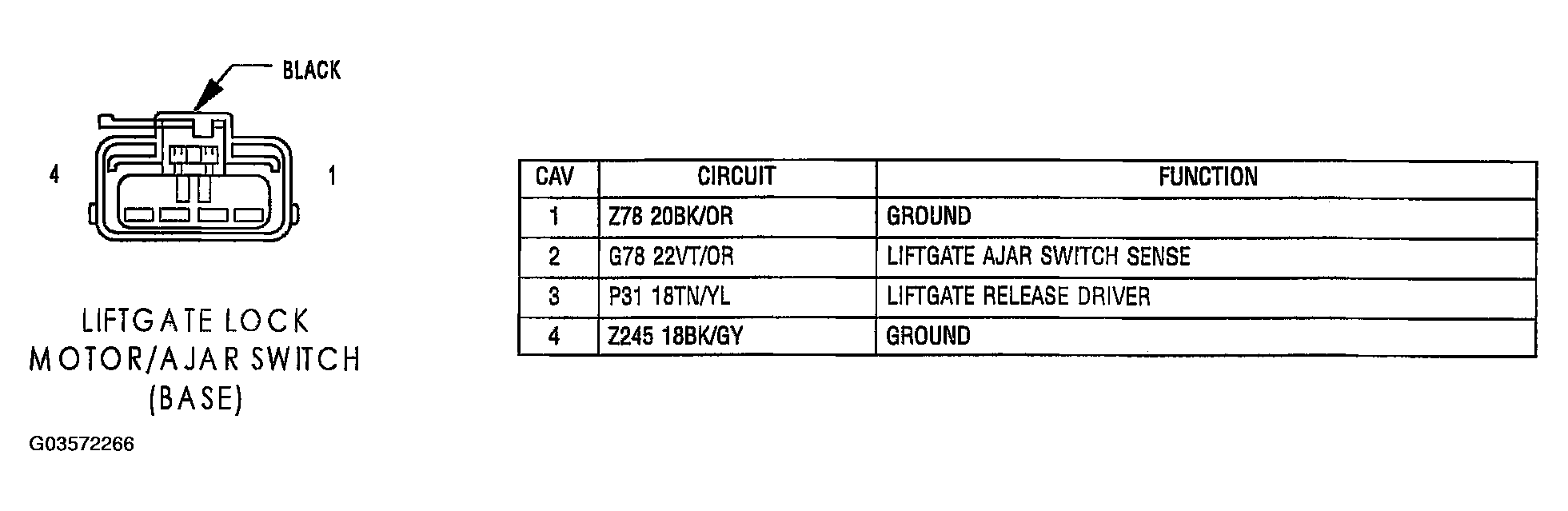

Fig 1: Identifying Liftgate Lock Motor/Ajar Switch Connector Terminals And Specification (Base - Black 4 Way)
G03572266Courtesy of DAIMLERCHRYSLER CORP.
