Liftgate Handle Switch - Black 2 Way

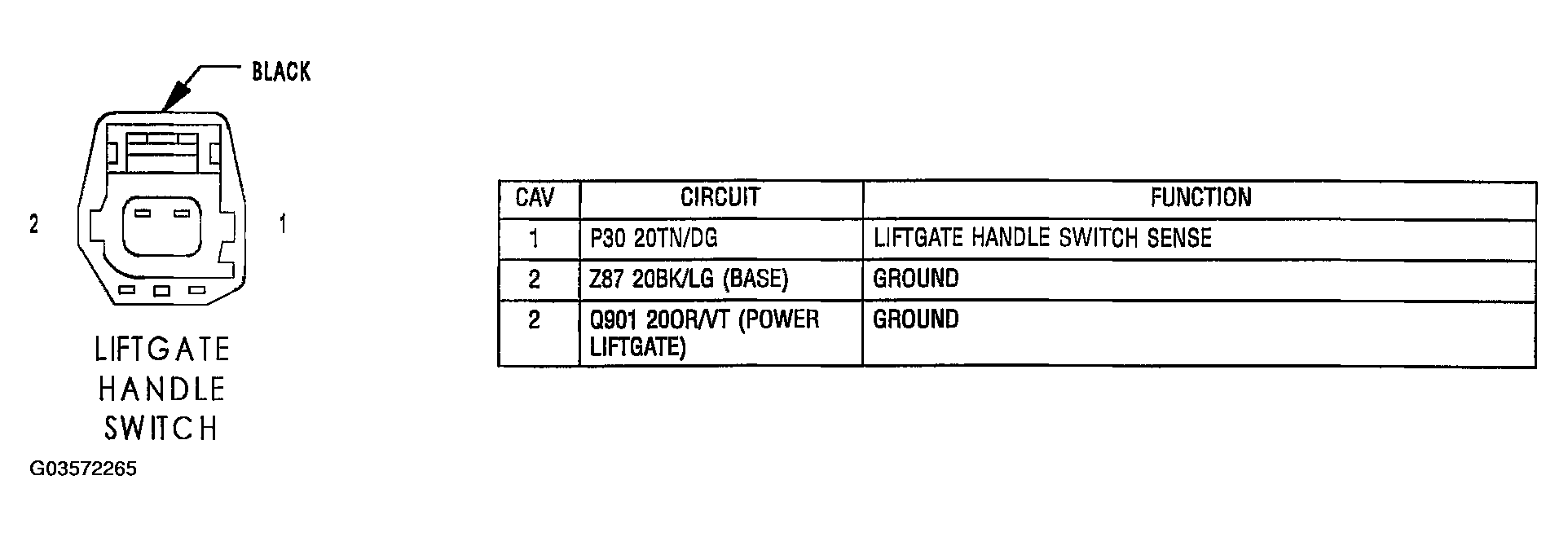

Fig 1: Identifying Liftgate Handle Switch Connector Terminals And Specification (Black 2 Way)

G03572265

Courtesy of DAIMLERCHRYSLER CORP.
