Liftgate Cinch/Release Motor (Power Liftgate) - Blue 7 Way

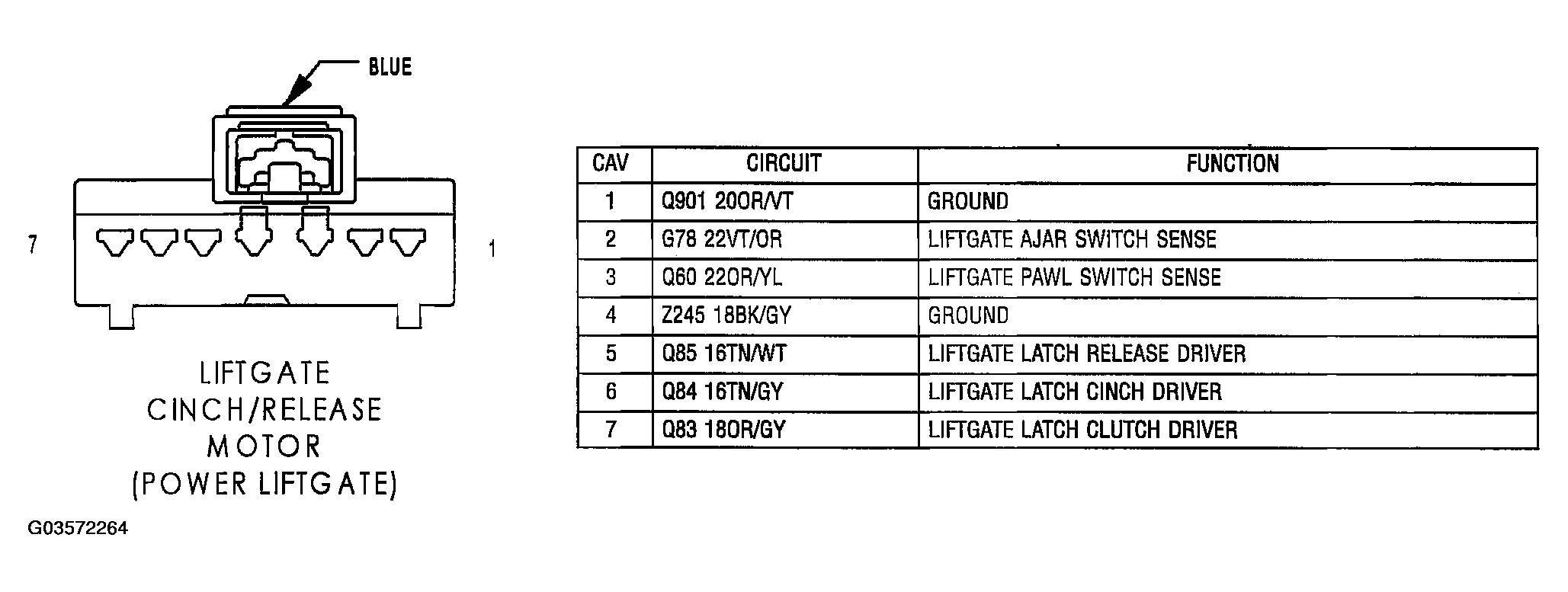

Fig 1: Identifying Liftgate Cinch/Release Motor Connector Terminals And Specification (Power Liftgate - Blue 7 Way)
G03572264Courtesy of DAIMLERCHRYSLER CORP.
