License Lamp - Red 6 Way

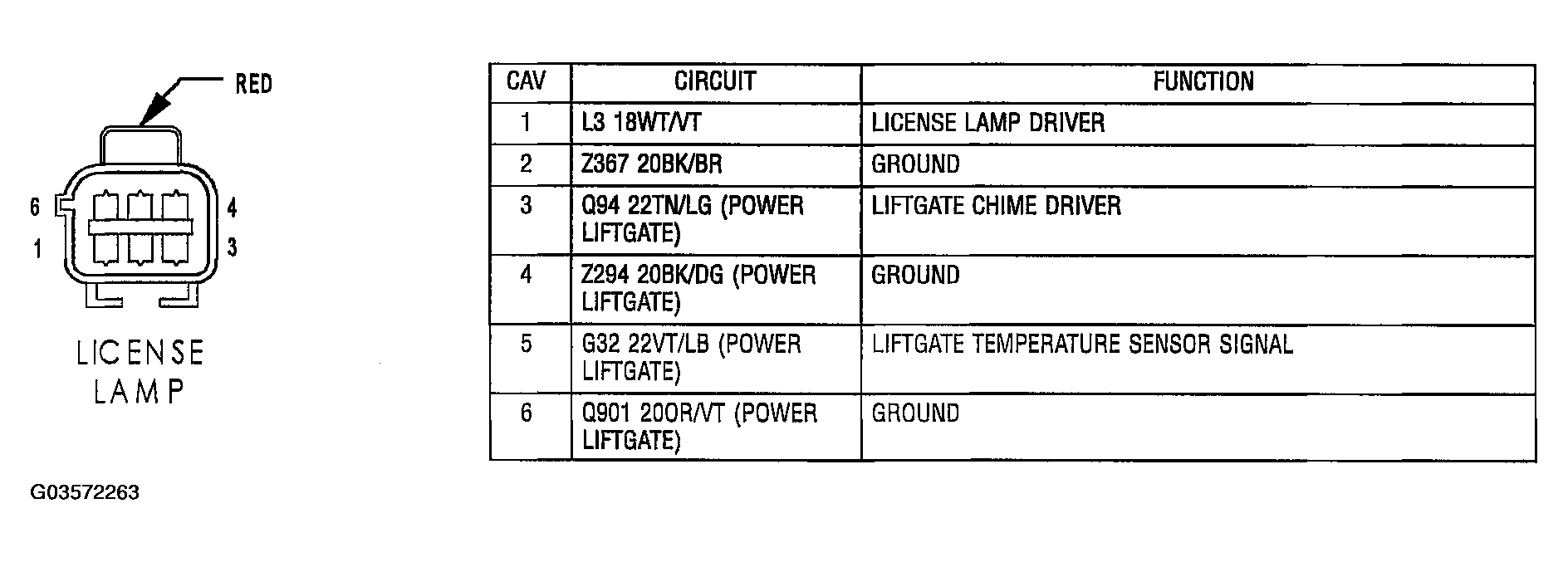

Fig 1: Identifying License Lamp Connector Terminals And Specification (Red 6 Way)

G03572263

Courtesy of DAIMLERCHRYSLER CORP.
