Integrated Power Module C9 - Blue 26 Way

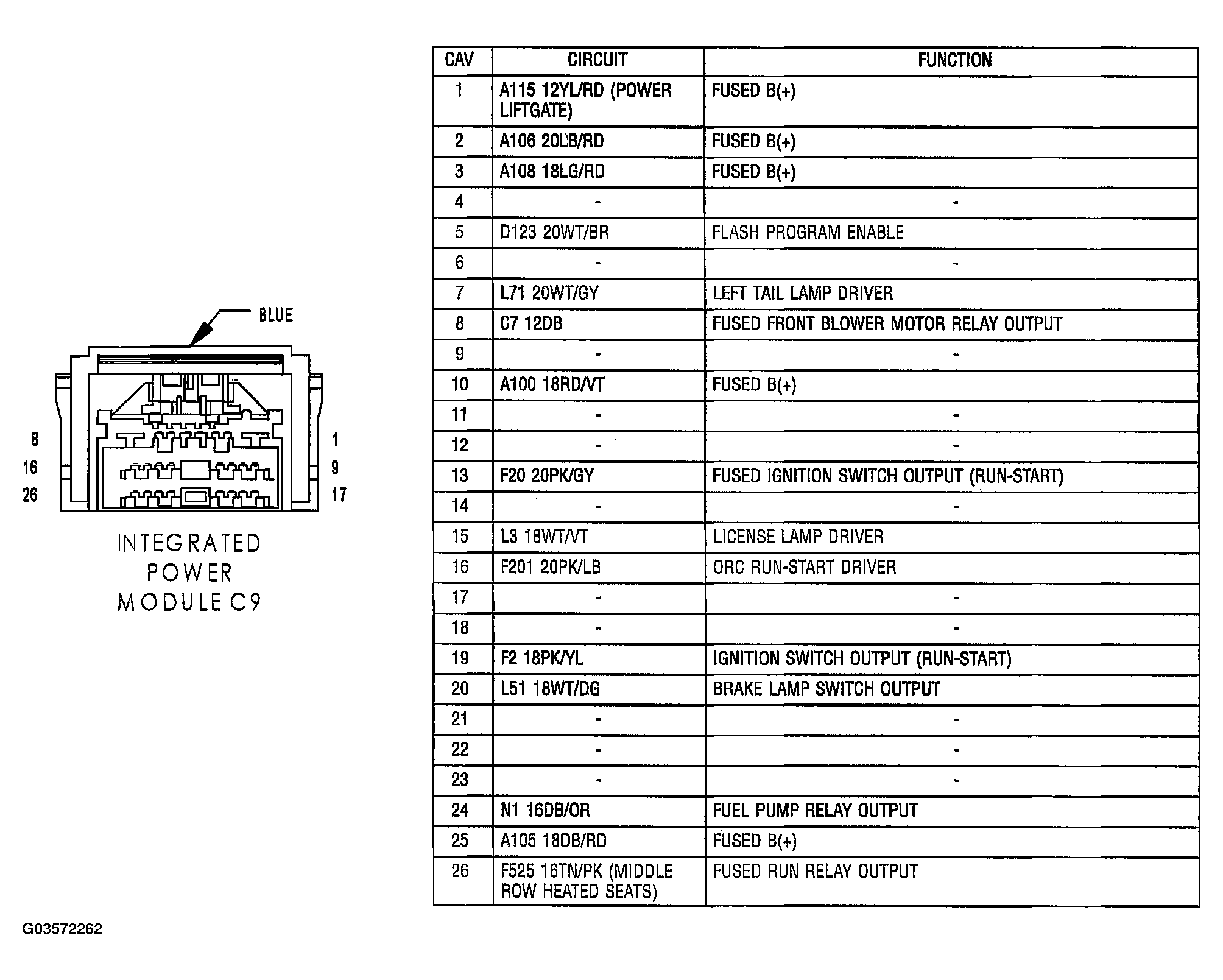

Fig 1: Identifying Integrated Power Module C9 Connector Terminals And Specification (Blue 26 Way)

G03572262

Courtesy of DAIMLERCHRYSLER CORP.
