Integrated Power Module C8 - White 15 Way

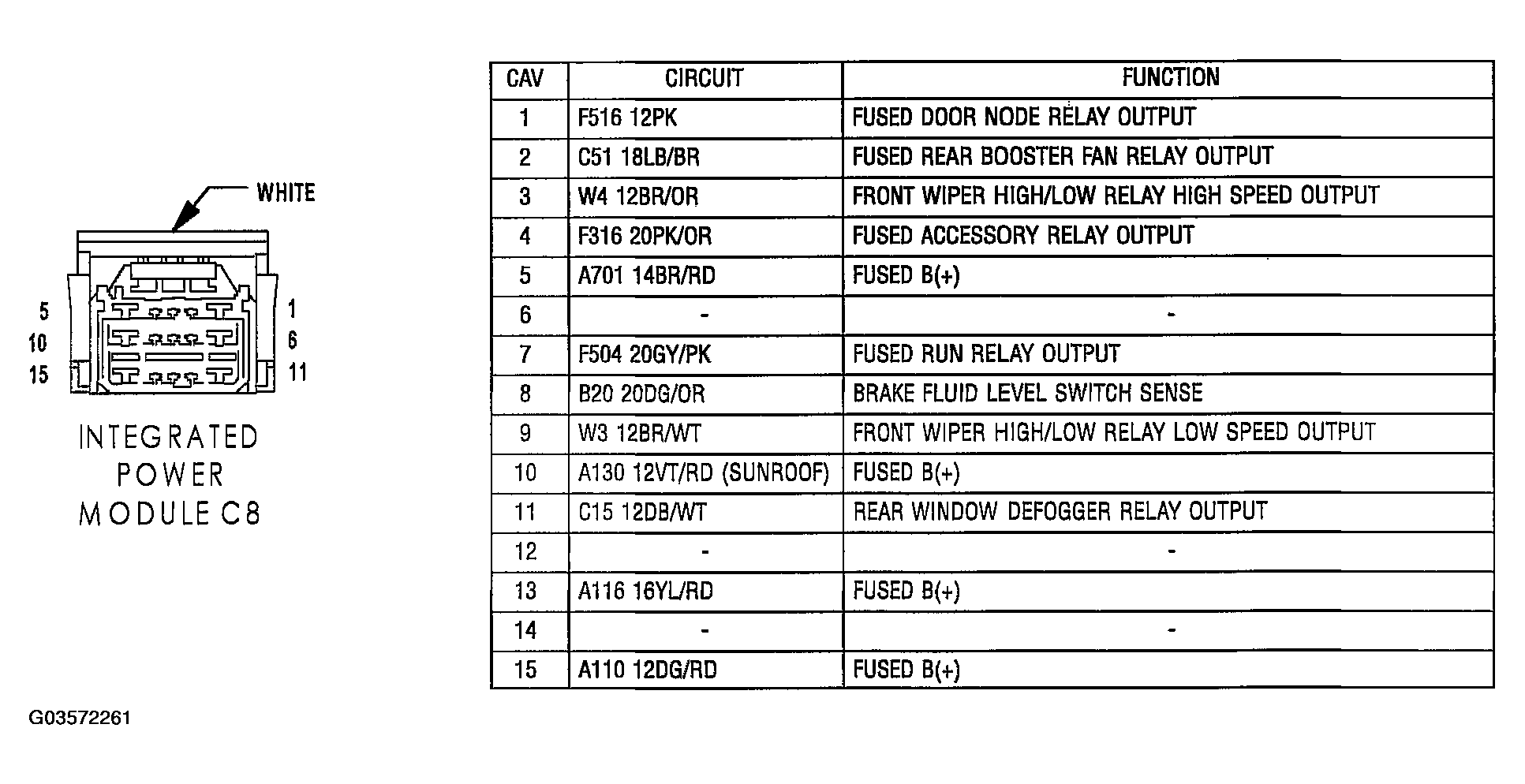

Fig 1: Identifying Integrated Power Module C8 Connector Terminals And Specification (White 15 Way)

G03572261

Courtesy of DAIMLERCHRYSLER CORP.
