Chrysler
>>
2004
>>
Pacifica FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Body Diagnostic Procedures - Component Locations
>>
Connector PINOUTS
>>
Integrated Power Module C7 - Gray 1D Way
Integrated Power Module C7 - Gray 1D Way

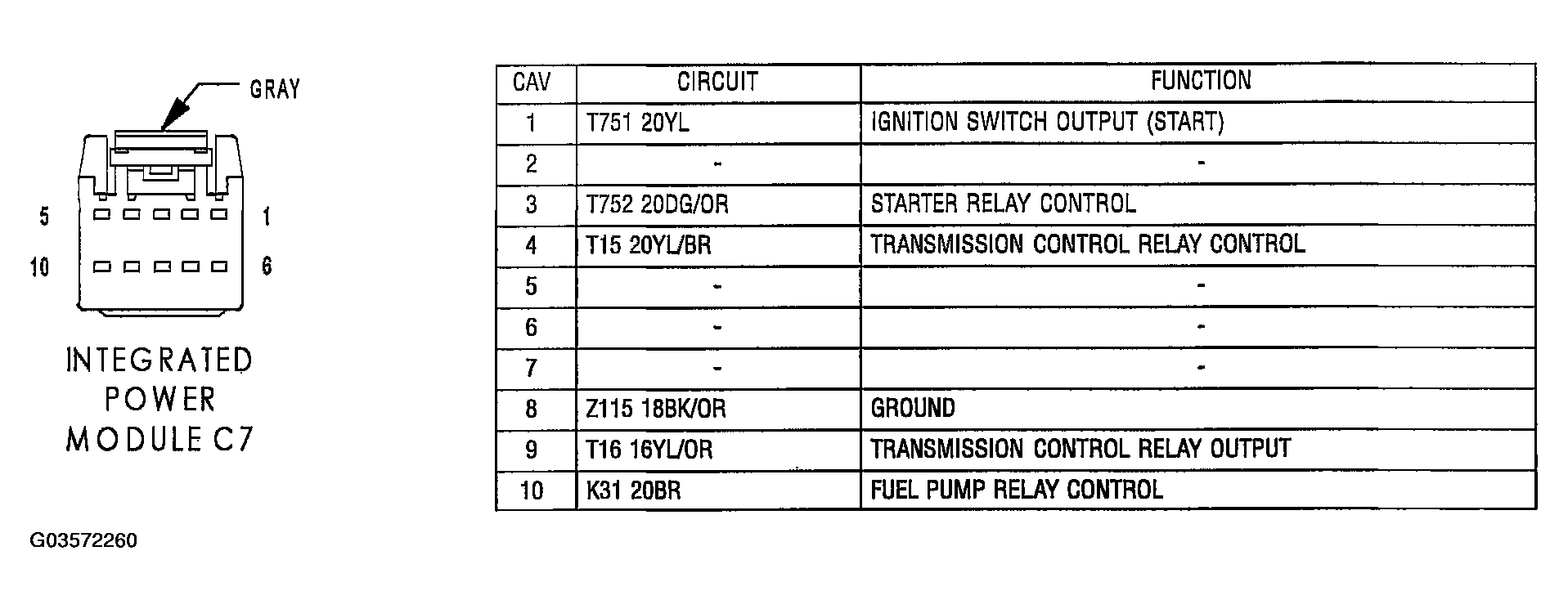

Fig 1: Identifying Integrated Power Module C7 Connector Terminals And Specification (Gray 10 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
