Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Body Diagnostic Procedures - Component Locations
>>
Connector PINOUTS
>>
Integrated Power Module C4 - Green 16 Way
Integrated Power Module C4 - Green 16 Way

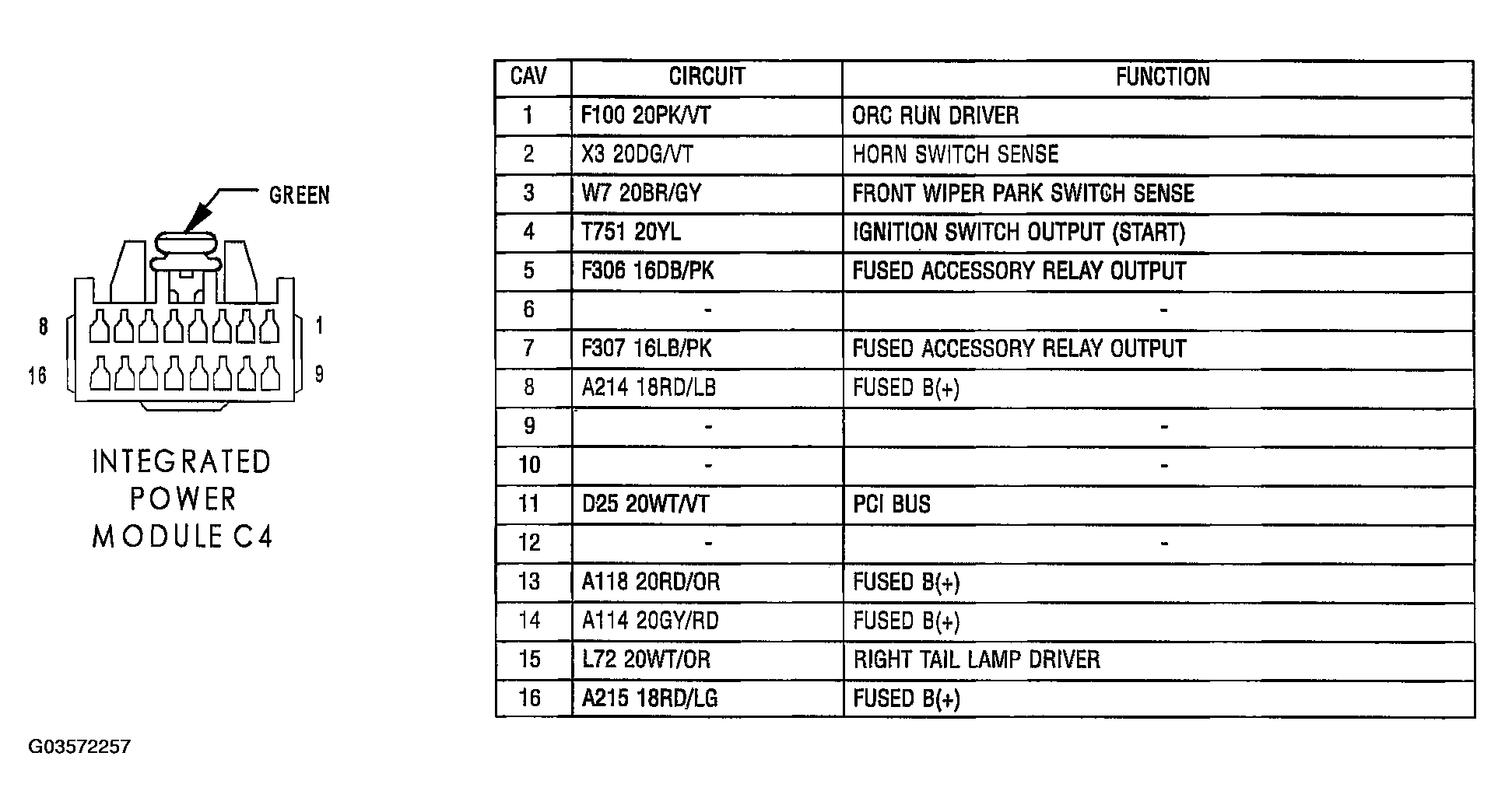

Fig 1: Identifying Integrated Power Module C4 Connector Terminals And Specification (Green 16 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
