Integrated Power Module C2 - DK. Gray 4 Way

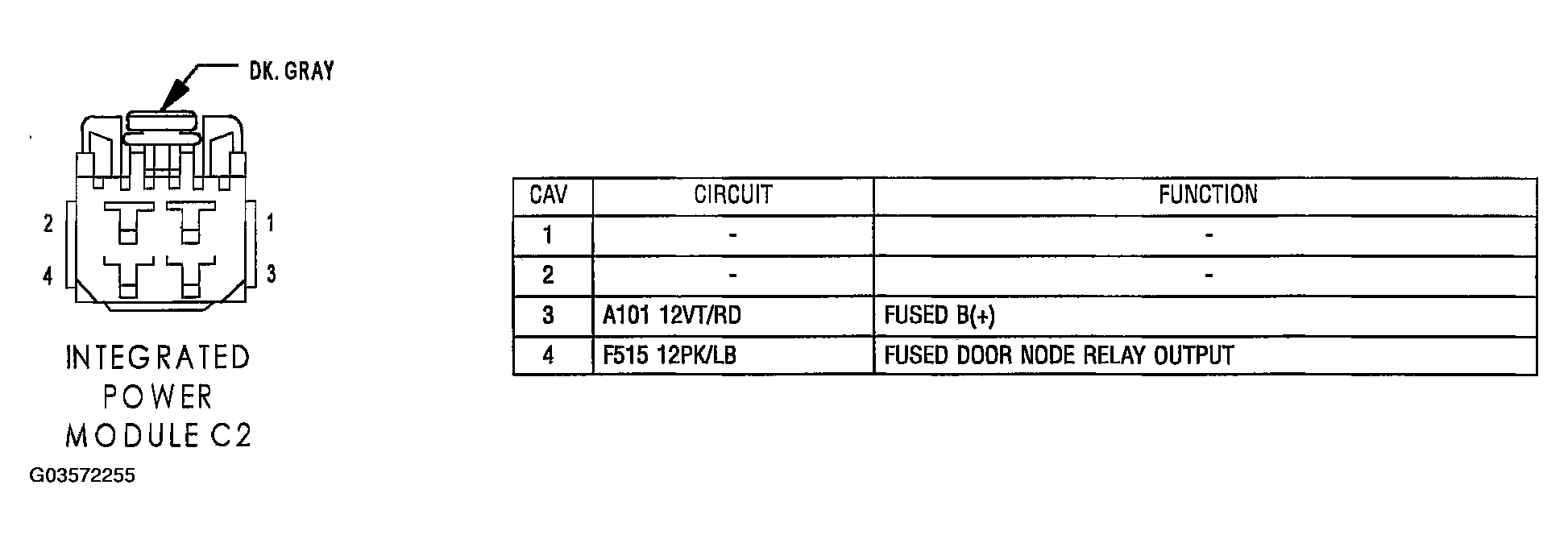

Fig 1: Identifying Integrated Power Module C2 Connector Terminals And Specification (DK. Gray 4 Way)

G03572255

Courtesy of DAIMLERCHRYSLER CORP.
