Integrated Power Module C1 - Black 15 Way

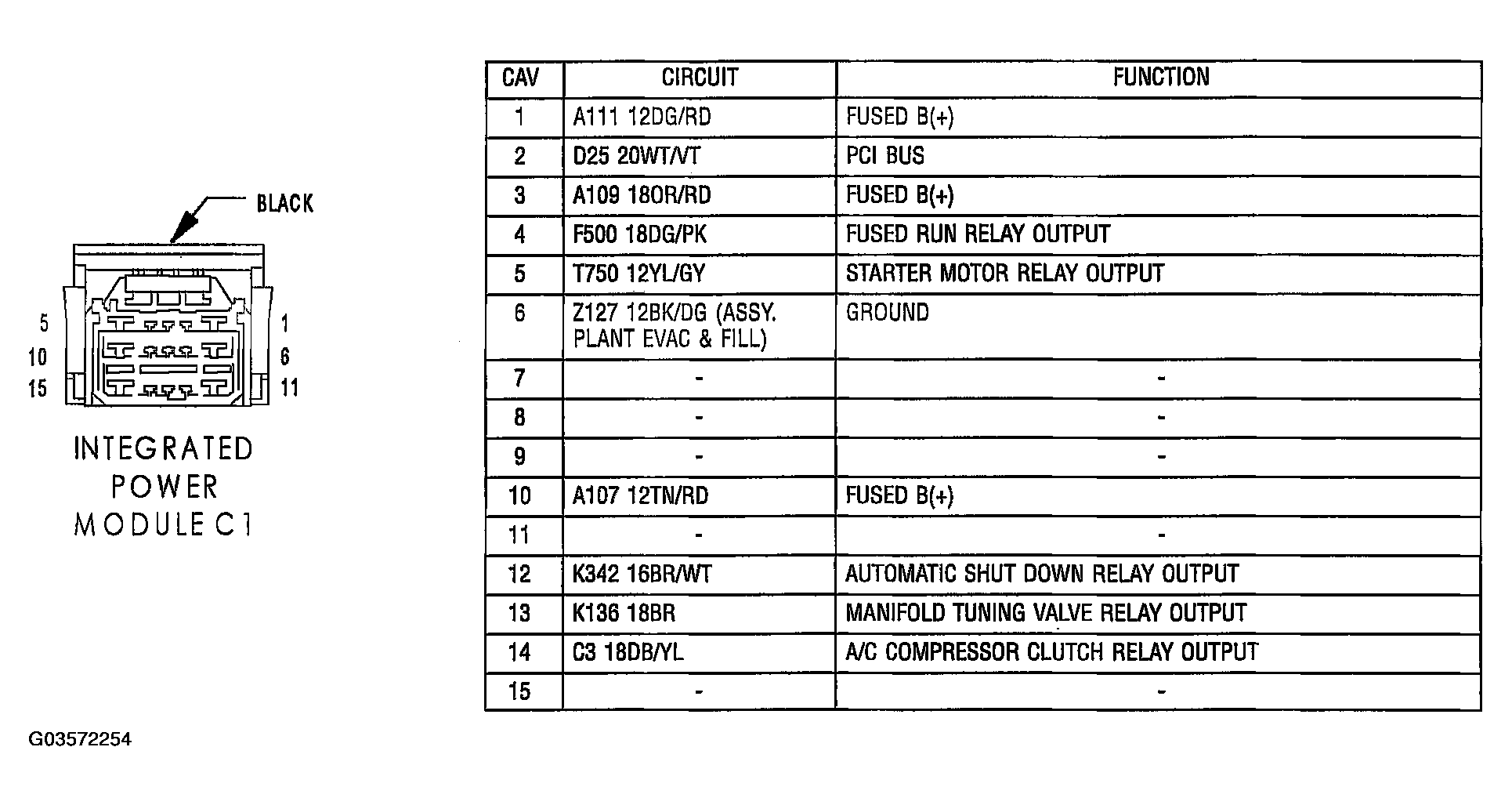

Fig 1: Identifying Integrated Power Module C1 Connector Terminals And Specification (Black 15 Way)
G03572254Courtesy of DAIMLERCHRYSLER CORP.
