Instrument Panel Switch Pod - Black 12 Way
Instrument Panel Switch Pod - Black 12 Way

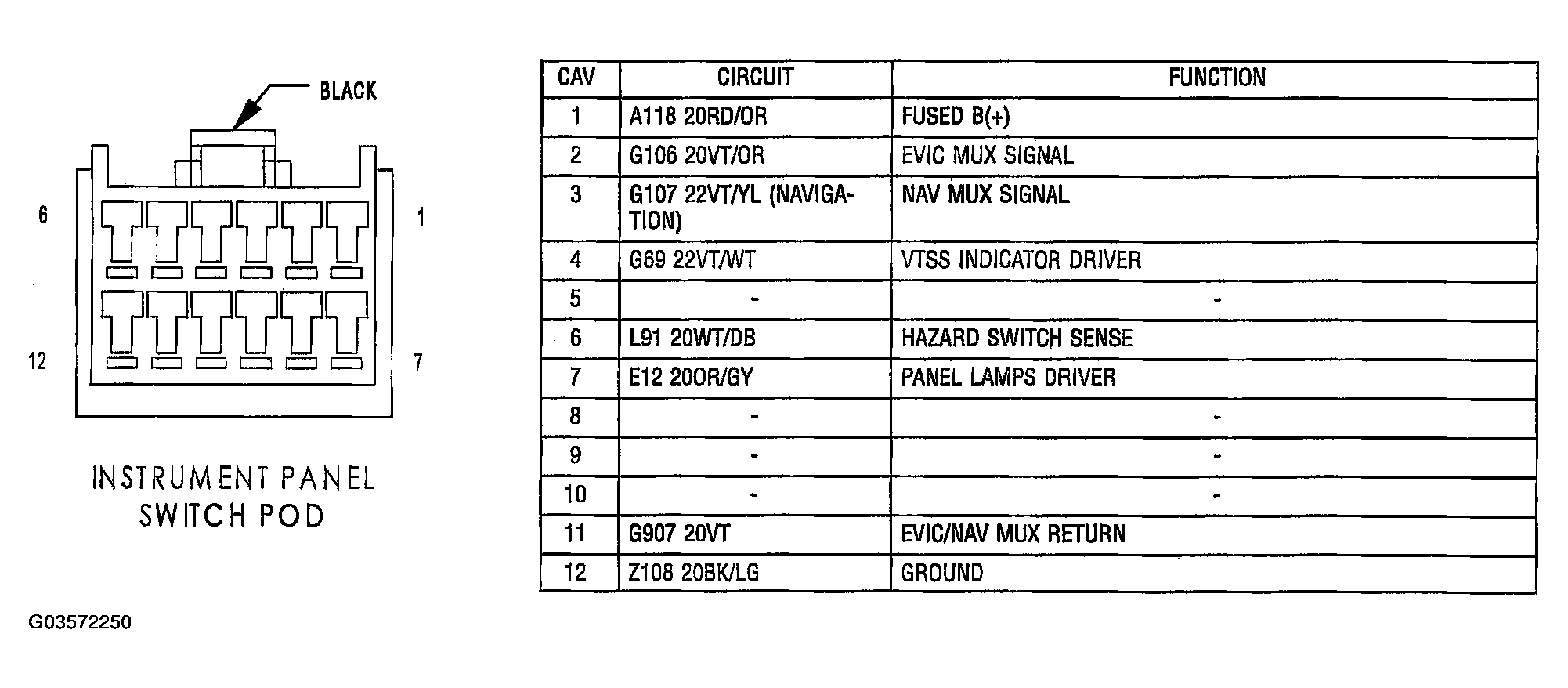

Fig 1: Identifying Instrument Panel Switch POD Connector Terminals And Specification (Black 12 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
