Instrument Cluster C2 (Navigation) - Black 12 Way

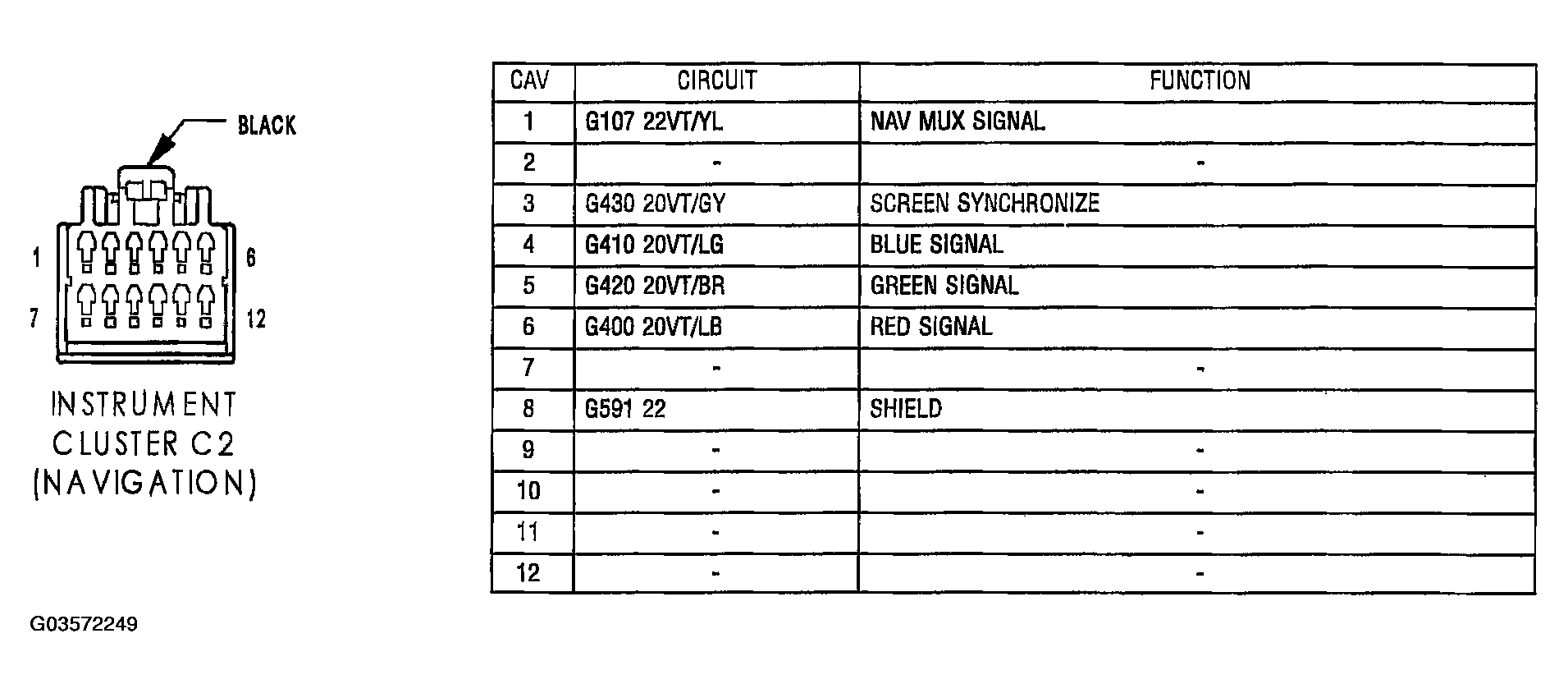

Fig 1: Identifying Instrument Cluster C2 Connector Terminals And Specification (Navigation - Black 12 Way)

G03572249

Courtesy of DAIMLERCHRYSLER CORP.
