Instrument Cluster C1 - Black 16 Way

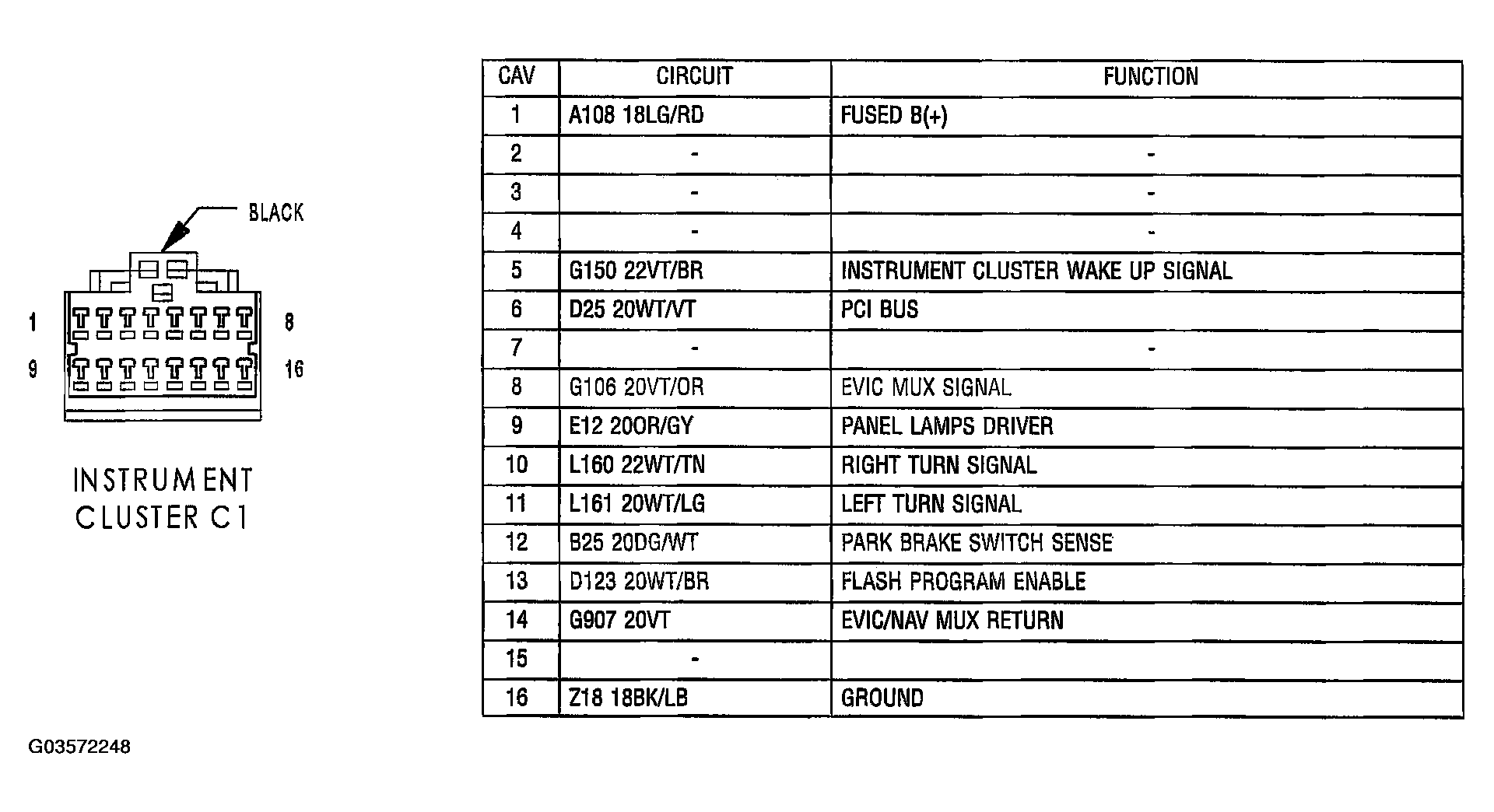

Fig 1: Identifying Instrument Cluster C1 Connector Terminals And Specification (Black 16 Way)

G03572248

Courtesy of DAIMLERCHRYSLER CORP.
