Impact Sensor-Left Side 1 - DK. Gray 2 Way

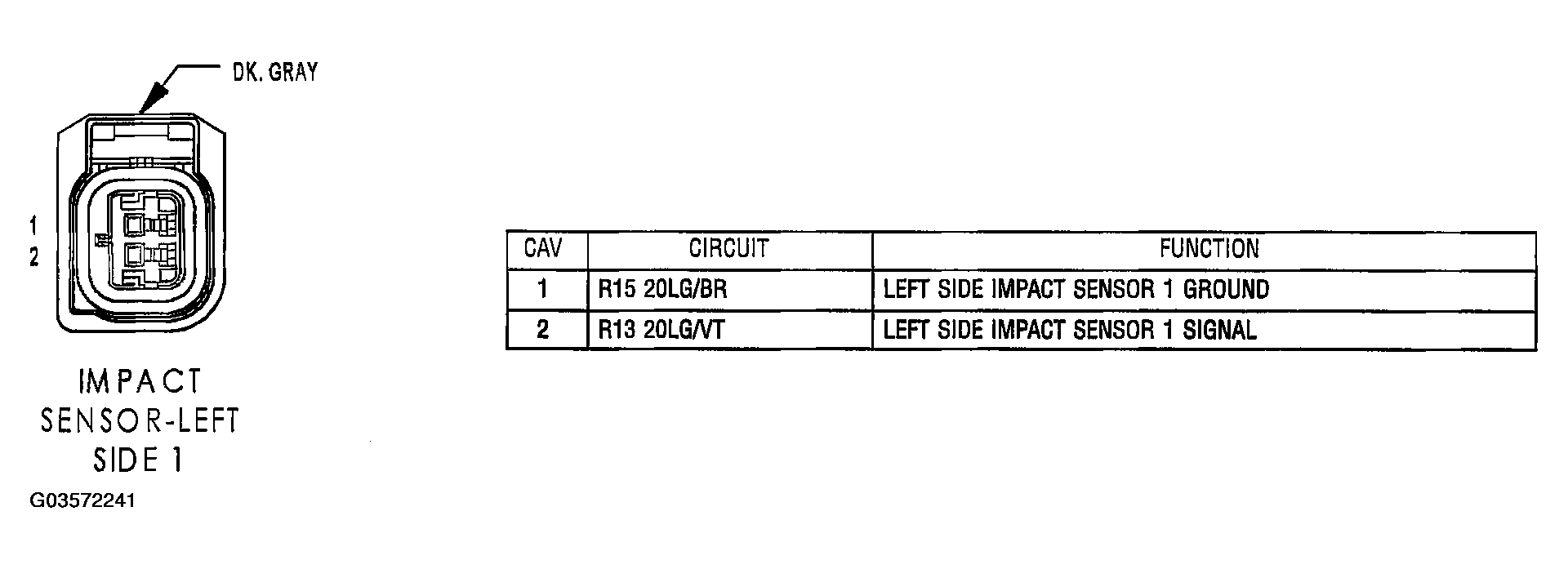

Fig 1: Identifying Impact Sensor-Left Side 1 Connector Terminals And Specification (DK. Gray 2 Way)

G03572241

Courtesy of DAIMLERCHRYSLER CORP.
