Impact Sensor-Left Front - Black 2 Way

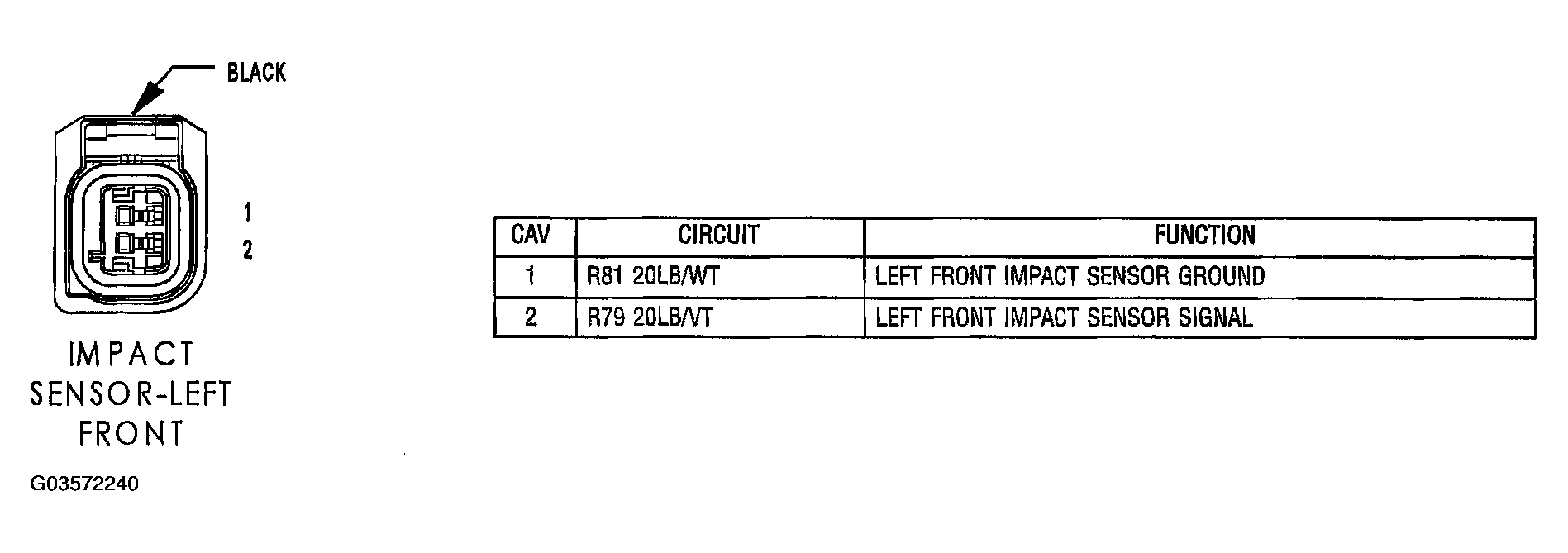

Fig 1: Identifying Impact Sensor-Left Front Connector Terminals And Specification (Black 2 Way)

G03572240

Courtesy of DAIMLERCHRYSLER CORP.
