Heated Seat Cushion-Driver - DK. Gray 4 Way

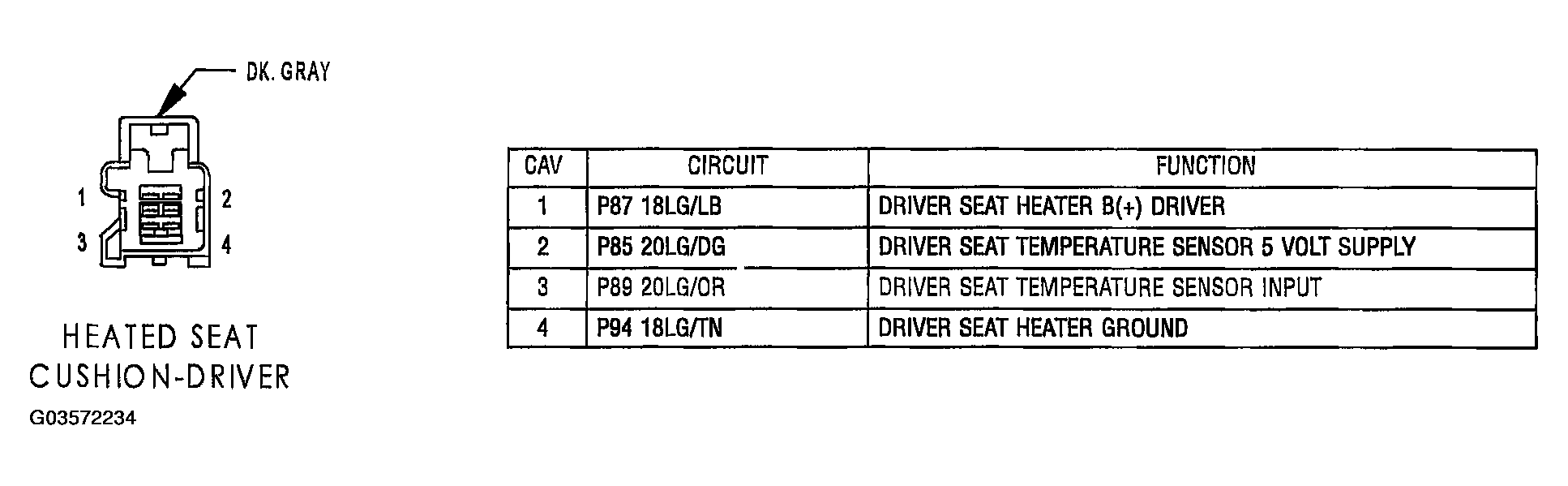

Fig 1: Identifying Heated Seat Cushion-Driver Connector Terminals And Specification (DK. Gray 4 Way)

G03572234

Courtesy of DAIMLERCHRYSLER CORP.
