Heated Seat Back-Passenger - Green 2 Way
Heated Seat Back-Passenger - Green 2 Way

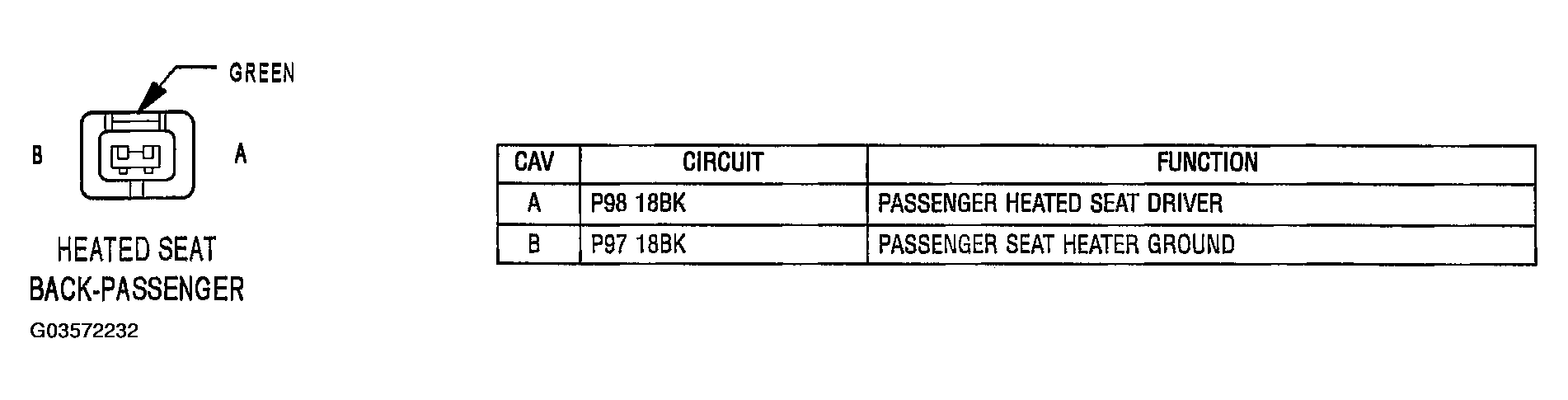

Fig 1: Identifying Heated Seat Back-Passenger Connector Terminals And Specification (Green 2 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
