Headlamp-Left - Black 8 Way

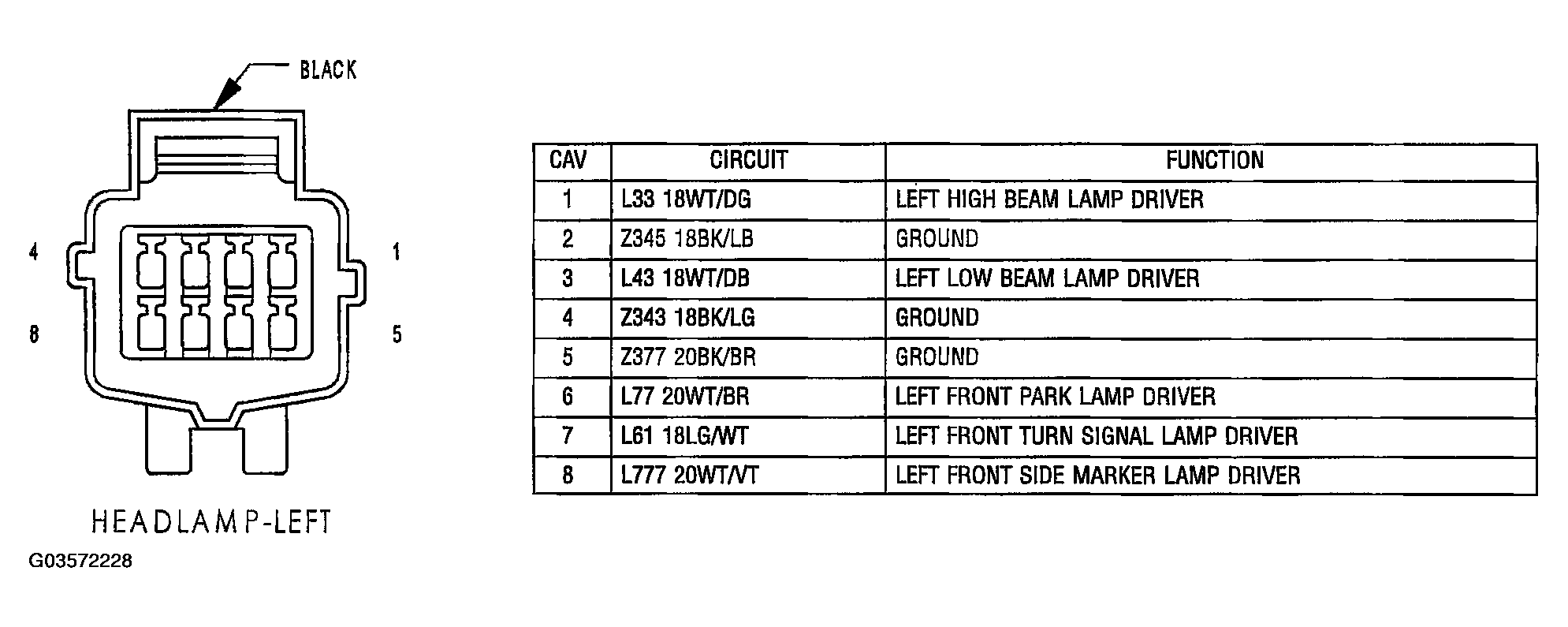

Fig 1: Identifying Headlamp-Left Connector Terminals And Specification (Black 8 Way)

G03572228

Courtesy of DAIMLERCHRYSLER CORP.
