Hands Free Module - Gray 22 Way

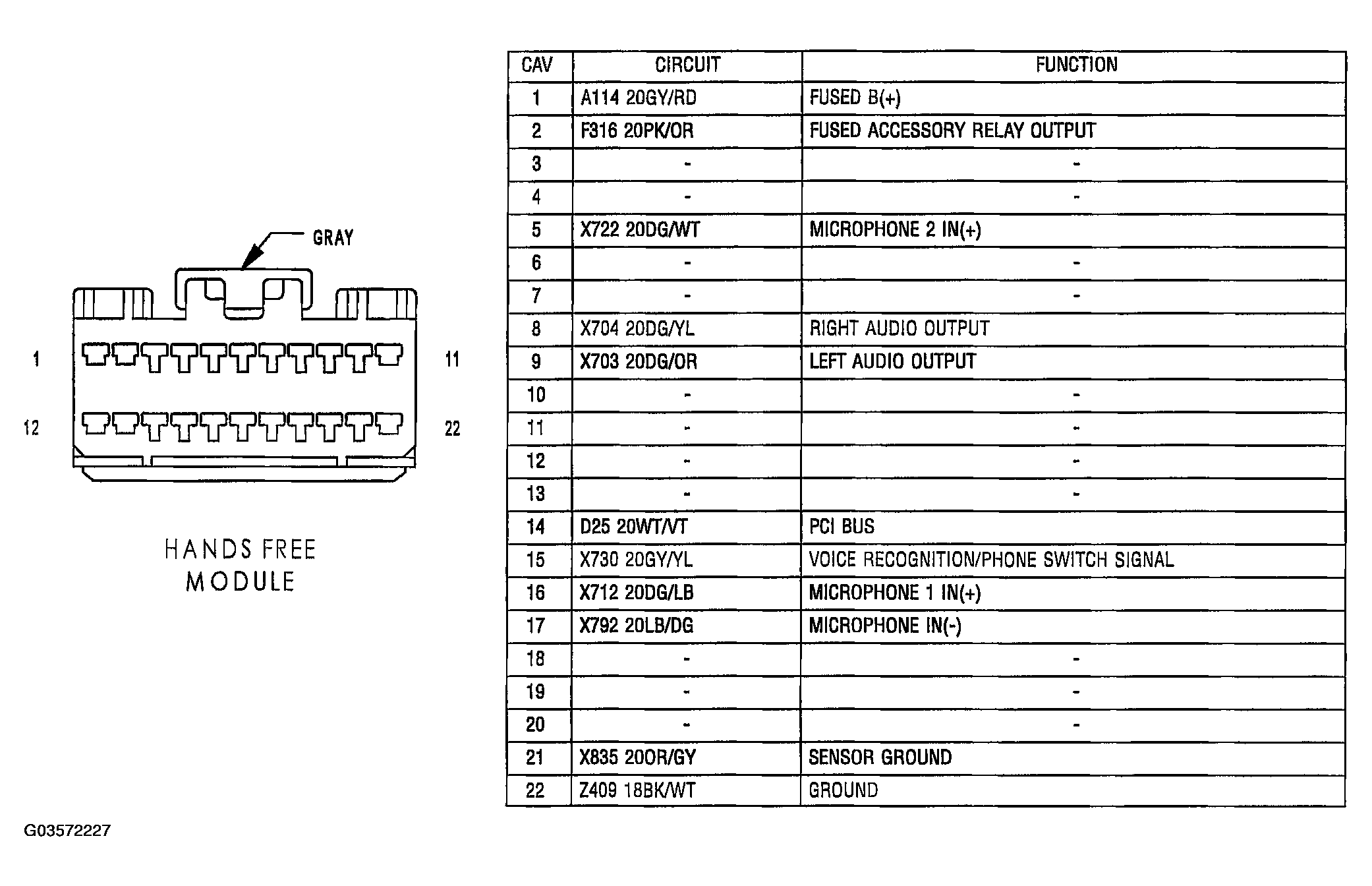

Fig 1: Identifying Hands Free Module Connector Terminals And Specification (Gray 22 Way)

G03572227

Courtesy of DAIMLERCHRYSLER CORP.
