Fuel Pump Module - Black 6 Way

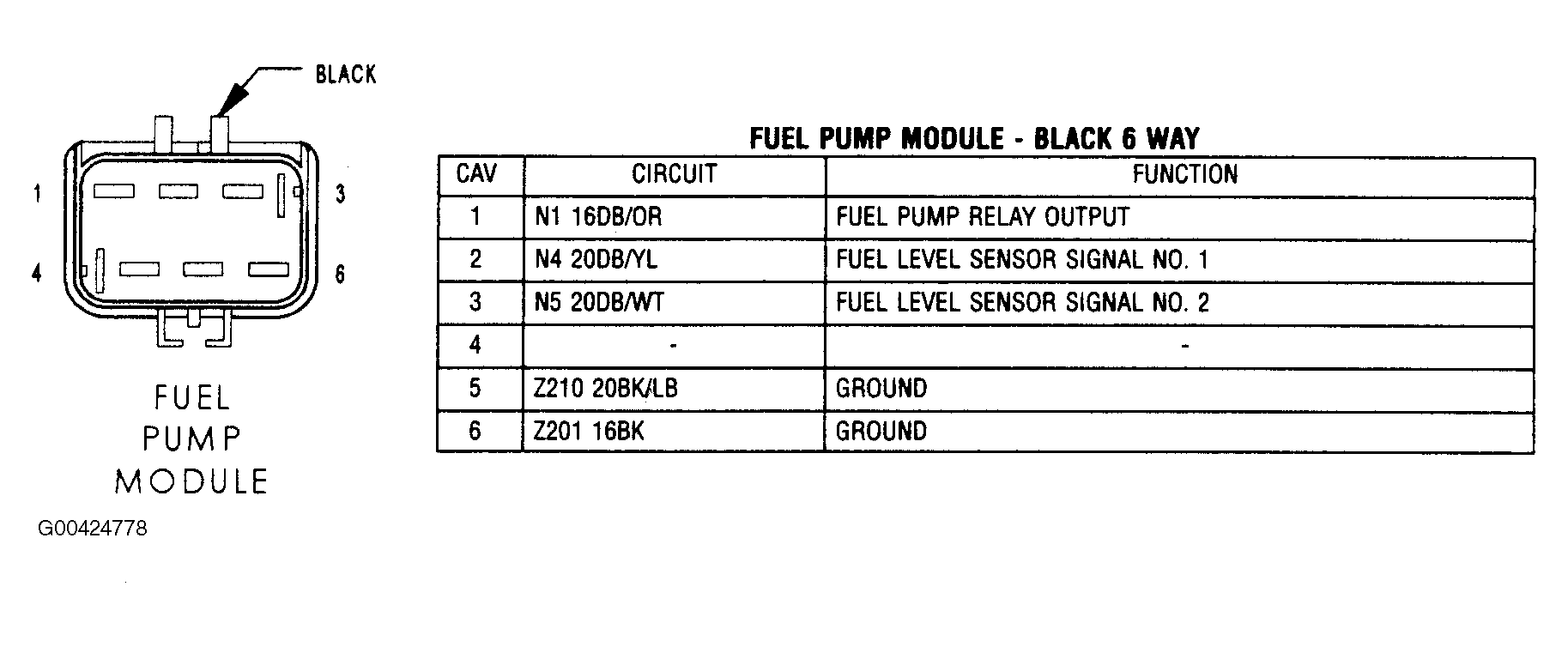

Fig 1: Identifying Fuel Pump Module Connector Terminals And Specification (Black 6 Way)

G00424778

Courtesy of DAIMLERCHRYSLER CORPORATION
