Front Blower Power Module C1 - Black 4 Way

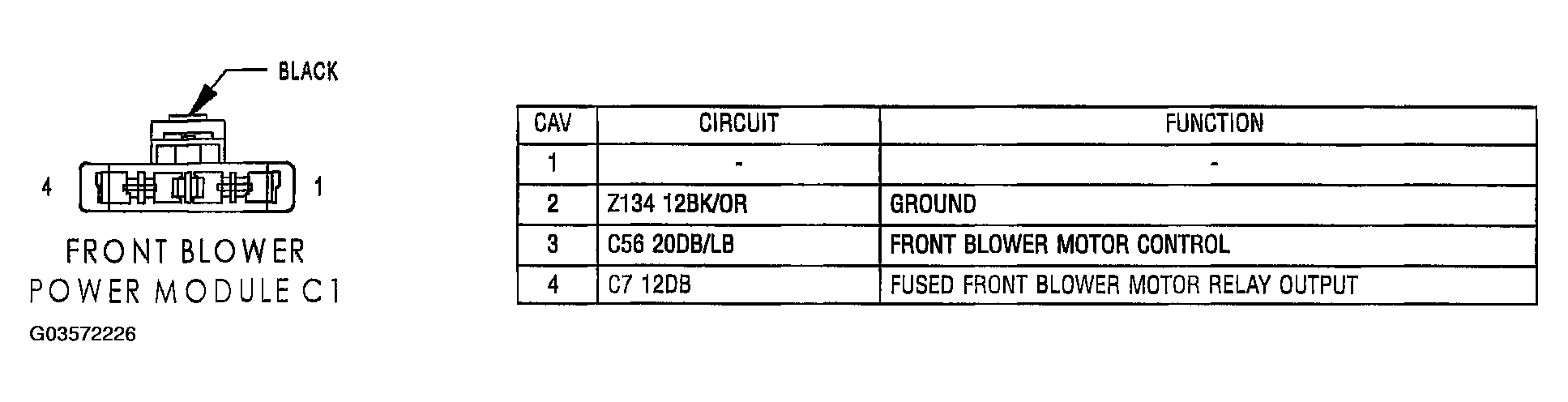

Fig 1: Identifying Front Blower Power Module C1 Connector Terminals And Specification (Black 4 Way)
G03572226Courtesy of DAIMLERCHRYSLER CORP.
