Fog Lamp-Left - Black 2 Way

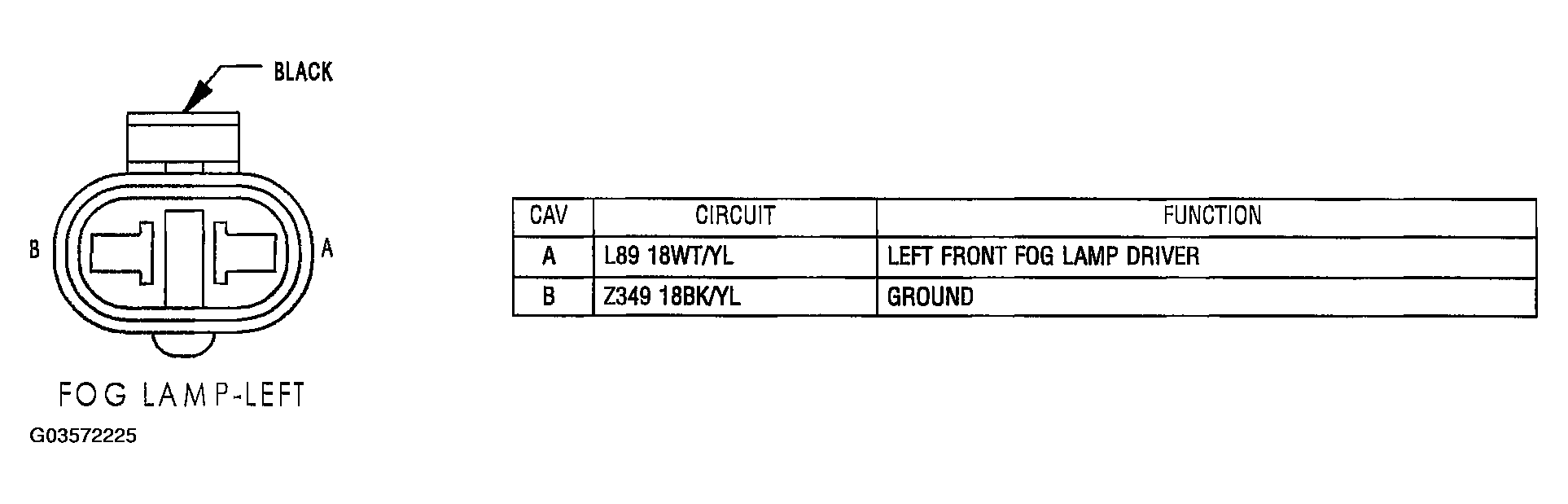

Fig 1: Identifying Fog Lamp-Left Connector Terminals And Specification (Black 2 Way)

G03572225

Courtesy of DAIMLERCHRYSLER CORP.
