Evaporator Temperature Sensor - Black 2 Way

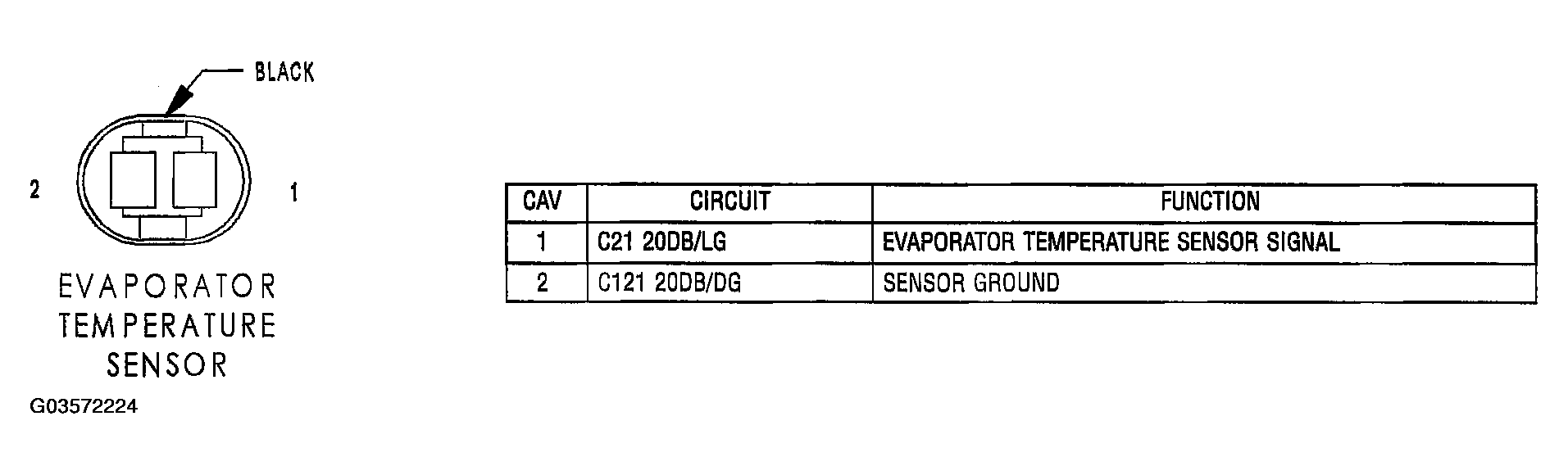

Fig 1: Identifying Evaporator Temperature Sensor Connector Terminals And Specification (Black 2 Way)
G03572224Courtesy of DAIMLERCHRYSLER CORP.
